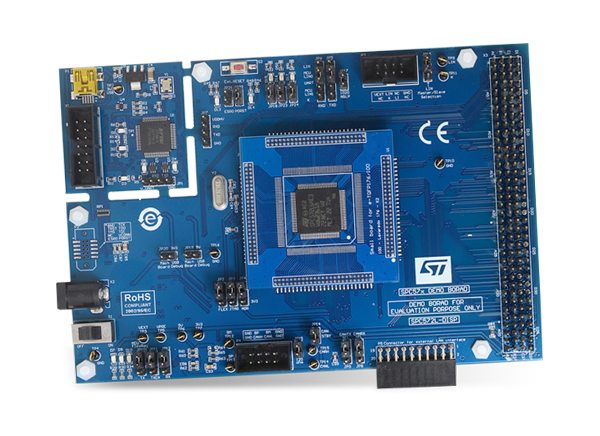

STMicroelectronics SPC572L-DISP Discovery Kit for SPC572L

STMicroelectronics SPC572L-DISP Discovery Kit for SPC572L allows full access to CPUs, GPI/Os, and peripherals like CAN, FlexRay, LIN, and UART. The board includes a PLS debugger-programmer, and two JTAG ports. The board also includes an extension headers array (4x37 pins) to connect prototyping boards or additional modules. UDE software is available for free and includes a perpetual 256KB debugging/programming license.

Features

  • SPC572L64E3 is 32-bit Power Architecture®VLE Compliant CPU core, single issue, single-precision floating-point operations
  • 1568KB on-chip RWW flash memory. Supporting EEPROM emulation (32KB)
  • 64KB general-purpose data SRAM
  • System Memory Protection Unit (SMPU) Integrated programmer - debugger
  • 12V (ext PSU) and USB board supply
  • Integrated programmer - debugger.
  • Standard 7 x 2 male 2.54mm connector for JTAG interface
  • 2 x 5 12.7mm Mini JTAG connector
  • 1 CAN port with a transceiver
  • 1 KLine with transceiver
  • 1 USB virtual COM Port
  • 3 LEDs for user purpose
  • 20MHz crystal
  • The GIPOs and pins accessible by a 4 x 37 2.54mm pin grid array
  • Board size 153 x 102mm
