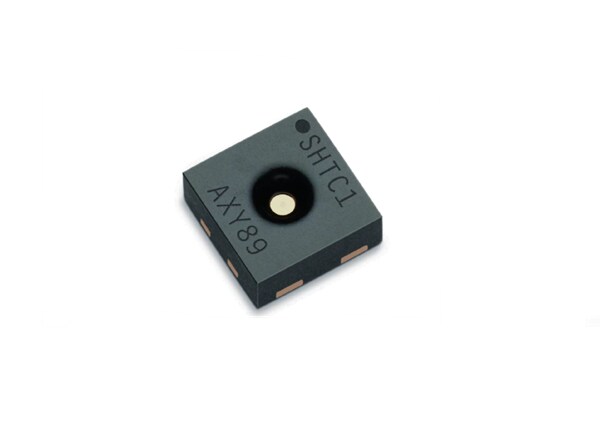

Sensirion SHTC1 Digital Humidity Sensor IC

Sensirion SHTC1 Digital Humidity Sensor IC is designed especially for high-volume consumer electronics applications. This sensor is intended to overcome conventional limits for size, power consumption, and performance-to-price ratio to fulfill current and future requirements.

The Sensirion SHTCI covers a humidity measurement range of 0 to 100%RH and a temperature measurement range of -30°C to 100°C with a typical accuracy of ±3%RH and ±0.3°C. The operation voltage of 1.8V and an energy budget below 1μJ per measurement make the SHTC1 suitable for mobile or wireless applications running on the tightest power budgets. The ultra-small, 2 × 2 × 0.75mm3 DFN package enables applications in even the most limited spaces.

Features

  • Best performance-to-price ratio
  • Fully calibrated and reflow solderable
  • Ultra-low power consumption
  • Power-up and measurement within 1ms
  • Ultra-small DFN package:
  • 2 x 2 x 0.75mm3
  • Typical accuracy: ±3%RH and ±0.3°C

Specifications

  • Supply voltage: 1.8V
  • Power consumption: 2µW (at one reading per second in low power mode)
  • Measuring range (RH): 0 - 100% relative humidity
  • Measuring range (T): -30°C to +100°C (-22 to +212°F)
  • Response time (RH): 8s (tau63%)

Functional Block Diagram

Block Diagram - Sensirion SHTC1 Digital Humidity Sensor IC

Additional Resources
