Maxwell Technologies 3.0V XP™ Small Cell Ultracapacitors

Maxwell Technologies 3.0V XP™ Small Cell Ultracapacitors are designed to provide energy storage while supporting renewable energy, smart grid, and IoT. The 3.0V solutions provide a cost-efficient, high performance, long-life platform, and are available in 3F, 5F, 10F, 25F, and 50F. The ultracapacitors are high energy, high power solutions that also incorporate the XP technology offering enhanced performance under adverse environmental conditions. Applications for the 3.0V XP small cell ultracapacitors include actuators, emergency lighting, telematics, automotive, backup systems, smart meter, and robotics.

Features

  • 2500 hours biased humidity life, provides durability in demanding operating conditions
  • -40°C to +85°C operating temperature range
  • Flexibility for system operation in diverse environments
  • 3F to 50F capacitance range
  • High-quality structure and sealing
  • Compliant with UL, RoHS, and REACH

Applications

  • Smart metering
  • Automotive
    • Data logging
    • Advanced driver assistance systems
    • Autonomous driving
    • Backup power
  • Uninterruptable power supplies (UPS)
  • Robotics
  • Telematics
  • Medical devices
  • Consumer electronics
  • Actuators
  • Emergency lighting
  • Security equipment

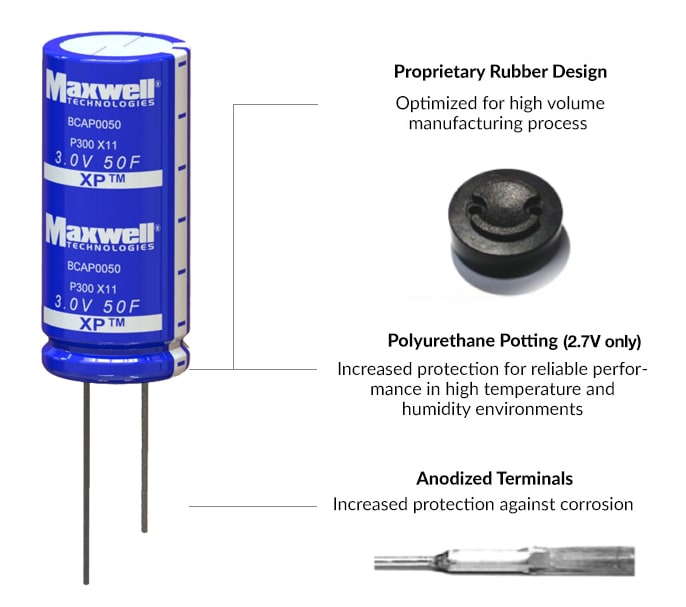

Design Benefits

Maxwell Technologies 3.0V XP™ Small Cell Ultracapacitors
View Results ( 22 ) Page
Part Number Datasheet Capacitance ESR Length Diameter
BCAP0100 P300 S17 BCAP0100 P300 S17 Datasheet 100 F 4.5 mOhms 46 mm 22 mm (0.866 in)
BCAP0150 P300 S17 BCAP0150 P300 S17 Datasheet 150 F 6.5 mOhms 50 mm 25 mm (0.984 in)
BCAP0010 P300 X12 BCAP0010 P300 X12 Datasheet 10 F 20 mOhms 30.5 mm 10 mm (0.394 in)
BCAP0450 P270 S18 BCAP0450 P270 S18 Datasheet 450 F 2.8 mOhms 63.5 mm 35 mm (1.378 in)
BCAP0010 P300 X11 BCAP0010 P300 X11 Datasheet 10 F 20 mOhms 30.5 mm 10 mm (0.394 in)
BCAP0350 P270 S18 BCAP0350 P270 S18 Datasheet 350 F 3.2 mOhms 63 mm 33.3 mm (1.311 in)
BCAP0003 P300 X11 BCAP0003 P300 X11 Datasheet 3 F 95 mOhms 19.5 mm 8 mm (0.315 in)
BCAP0005 P270 S01 BCAP0005 P270 S01 Datasheet 5 F 36 mOhms 20.5 mm 10 mm (0.394 in)
BCAP0005P300X11 BCAP0005P300X11 Datasheet 5 F 35 mOhms 20.5 mm 10 mm (0.394 in)
BCAP0010 P270 S12 BCAP0010 P270 S12 Datasheet 10 F 25 mOhms 30.5 mm 10 mm (0.394 in)
Published: 2019-03-11 | Updated: 2023-06-07
