Digilent Pmod™ Peripheral Modules

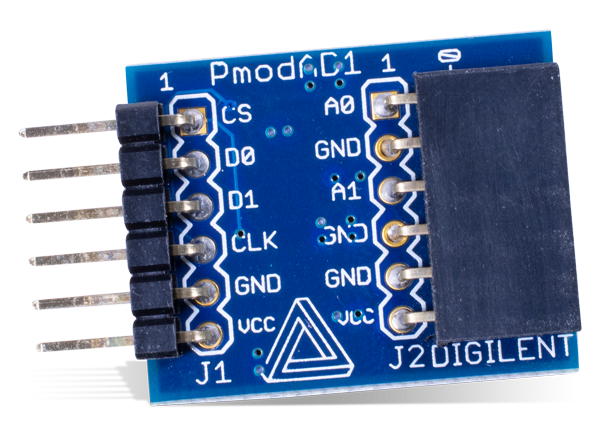

Digilent Pmod Peripheral Modules offer an ideal way to bridge programmable logic and microcontroller boards to the physical world. With more than 80 modules to choose from, users can easily augment the capabilities of system boards by adding sensors, actuators, communication, user input, and much more, all while staying within the Pmod Ecosystem. From rapid prototyping to learning the basics, Pmod Peripheral Modules get users up and running with useful data in just a matter of minutes.
How do they work?

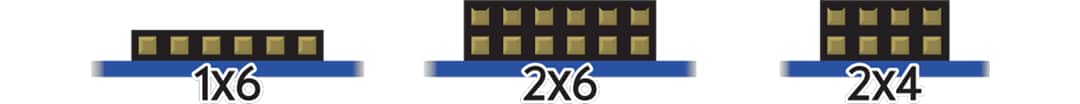

Pmods communicate with system boards using 6-pin, 8-pin, or 12-pin connectors that are designed to plug directly into Pmod host ports. Take advantage of standard interfaces including SPI, I2C, UART, GPIO, H-Bridge, and I2S.
How do I use them?
Through the Pmod Standard, users know what to expect from their Pmod. The Pmod Standard lays out guidelines for form factors, communication protocols, and interface specifications, as well as access to a target audience through reference manuals, code examples, user guides, and technical support.
