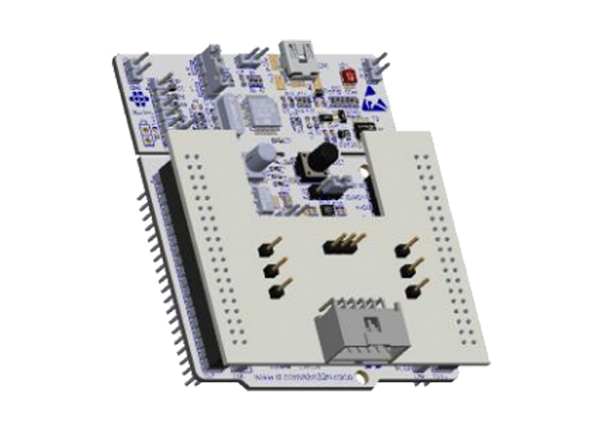

Broadcom AEAT-9922 Programming Kit is designed to evaluate AEAT-9922 magnetic encoder IC. The AEAT-9922 is an angular magnetic rotary sensor that provides accurate angular measurement over a full 360 degrees of rotation. This kit includes an STM32-Nucleo 64 programming board, an AEAT-9922 interface board, AEAT-9922 evaluation board, a dipole magnet, ribbon cable, and a micro USB cable.
1x STM32-Nucleo 64 programming board
1x AEAT-9922 interface board
2x AEAT-9922 eval board
6mm x 2.5mm dipole magnet
12-pin ribbon cable
Micro USB cable
Broadcom AEAT-9922 Magnetic Encoder ICs
10-bit to 18-bit programmable angular magnetic encoders that support on- and off-axis.
