TE Connectivity / Alcoswitch PBES16 Pushbutton Emergency Stop Switches

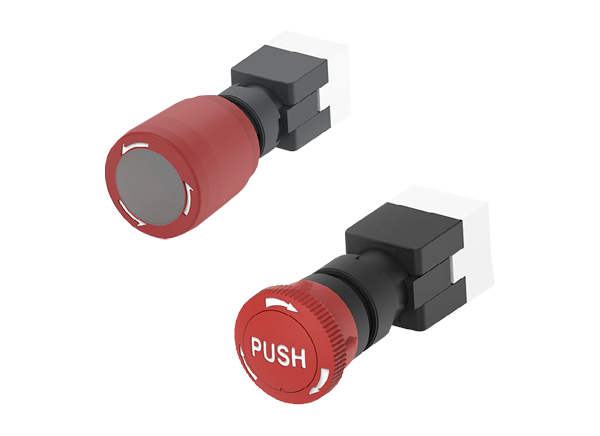

TE Connectivity / Alcoswitch PBES16 Pushbutton Emergency Stop Switches are offered as either illuminated or non-illuminated and with two different actuator button style options. The PBES16 pushbutton switches feature a 20N actuation force for ruggedized applications and to avoid accidental actuation. This series has multiple lighting options, agency approvals, and meets IEC 60947-5-1 & IEC 60947-5-5 standards. TE's PBES16 Pushbutton Emergency Stop Switches also offer an IP65 rating to withstand harsh environments.
Features
- Solder to wire or quick connect disconnect terminals
- Simple easy mounting
- 16mm mounting hole
- Gold plating
- Illuminated and non-illuminated
- LED and incandescent
- High actuation force
- IP65 rated
- IEC 60947-5-1 & IEC 60947-5-5
- UL and TUV agency approval
Applications
- Robotics
- Escalators
- Process machinery
- Medical equipment
- Factory automation
Specifications
- Lifecycle
- >100,000 mechanical operations
- >50,000 electrical operations
- <20 operations/minute motion tolerance
- 00.5mm to 5mm panel thickness range
- 1.1N-m mounting torque
- 1500VAC maximum insulation voltage at 60Hz, 100mA, 1 minute
- <= 50mΩ initial contact resistance
- Temperature ranges
- -40°C to +85°C storage
- -25°C to +55°C operating (-25°C to +70°C without lamp)
- Pollution degree 3
- 300V rated insulation voltage
- 5A conventional enclosed thermal current
- 125V or 250V rated operational voltages
