Murata XRCx HCR Hybrid Crystal Resonators

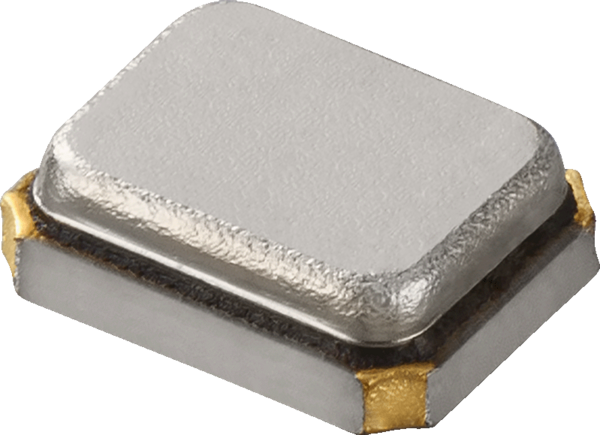

Murata XRCx HCR™ Hybrid Crystal Resonators are compact, low-cost resonators with improved accuracy of less than ±100ppm. This is achieved through a quartz crystal element encased in Murata's proven packaging derived from its ceramic resonator technology. This combination creates a timing device that is smaller and lower cost than standard quartz crystals while maintaining the precision of quartz. Murata XRCx family includes the XRCGB, XRCGE, and XRCHA resonators. The resonators are designed with four connection pads on the base, allowing for use on existing 3225 and 2520 board layouts. The RoHS-compliant devices are available in frequencies ranging from 24MHz to 48MHz.
Features
- Compact size
- 2.5mm x 2.0mm for 16MHz to 20MHz
- 2.0mm x 1.6mm for 24MHz to 48MHz
- Economical and robust design
- Simple structure using proven package technology
- Particle screening process for enhanced reliability
Applications
- Consumer
- Wireless (BLUETOOTH® Low Energy, NFC)
- Wired (Ethernet, USB2.0/3.0)
- Processors (CPU, MPU, DSP)
- HDD
- SSD
- PCs
- Medical / healthcare
- Industrial
- PLC
- LCD
- Processors
- Wireless (Zigbee®)
- Automotive (XRCGE)
