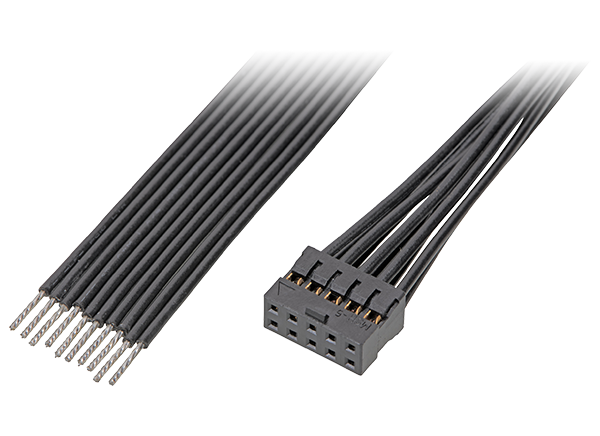

Molex OTS Milli-Grid Discrete-Wire Cable Assemblies

Molex Off-the-Shelf (OTS) Milli-Grid Discrete-Wire Cable Assemblies are offered a variety of cable lengths for connector systems based on a 2mm x 2mm grid pattern. These dual-row assemblies provide design flexibility for wire-to-board, board-to-board, and cable-to-board applications. The series is available in tin or gold in lengths of 50mm, 100mm, 150mm, 300mm, or 600mm with 4, 6, 8, or 10 circuits. The cable assemblies offer both a center polarization key and slot to prevent mismating while early entry system crimp terminals provide a longer pin wipe for more reliable contact. Other features include locking windows to ensure firm locking to receptacles, locking ramps for a strong retention force to headers, and a marking feature for first circuit location. Molex OTS Milli-Grid Discrete-Wire Cable Assemblies are ideal for use in automotive, telecommunications / networking, and consumer applications.

Features

Available gold or tin
Center polarization key and slot both prevent mismating
Early entry system crimp terminals provide longer pin wipe for a more reliable contact

Locking windows ensure firm locking to receptacle
Locking ramps deliver strong retention force to header
Marking feature provides marking for first circuit location
Optional IDT receptacle strain relief enhances cable retention

Applications

Automotive
- Car audio
- Data / telemetry
- GPS
Telecommunications / Networking
- Routers
- Servers
- Switches

Consumer
- Copiers
- Fax machines
- Printers
- Satellite radio

Specifications

4, 6, 8, and 10 circuits
50mm, 100mm, 150mm, 300mm, and 600mm lengths
Up to 125V_AC (rms) maximum voltage
6A maximum current for single circuit
40mΩ maximum contact resistance

1000MΩ minimum insulation resistance
500V_AC (rms) dielectric withstanding voltage for 1 minute between adjacent terminal or ground
1.15mm ±0.08mm insulation diameter
-10°C to +105°C operating temperature range
