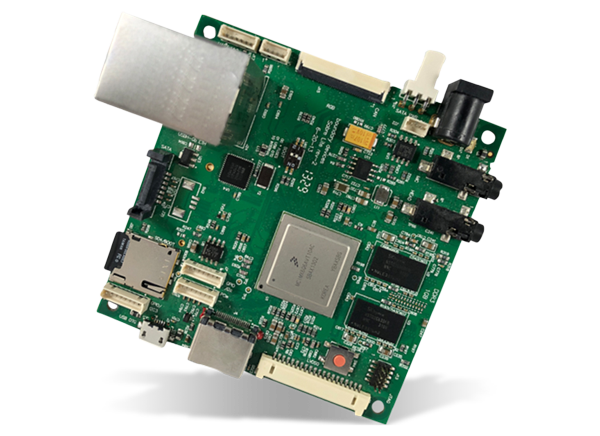

Boundary Devices SABRE Lite i.MX6 Development Board (BD-SL-i.MX6) is a low-cost development platform featuring the powerful NXP Semiconductors i.MX 6 Quad Applications Processor. Based on the SABRE (Smart Application Blueprint for Rapid Engineering) Lite Platform, the BD-SL-i.MX6 Board enables cost-effective, rapid development of multimedia applications for Android and Linux operating systems.
H.264 1080p60 decode, 1080p30 encode, and 3-D video playback in HD
Triple Play Graphics system consisting of a Quad-shader 3D unit capable of 200MT/s, and a separate 2-D and separate OpenVG Vertex acceleration engine for superior 3D, 2D, and user interface acceleration
Serial ATA 2.5 (SATA) at 3Gbps
Dual SD 3.0/SDXC card slots
PCIe port (1 lane)
Analog (headphone/mic) and Digital (HDMI) audio
Compact size (82mm x 82mm)
10/100/Gb IEEE1588 Ethernet
10-pin JTAG interface
3 High-speed USB ports (2x Host, 1x OTG)
1x CAN2 port
A wide range of accessories, such as touchscreen display, camera module, JTAG adapter, and more are available for the SABRE Lite i.MX6 Development Board.
