KYOCERA AVX PrizmaCap™ Capacitors

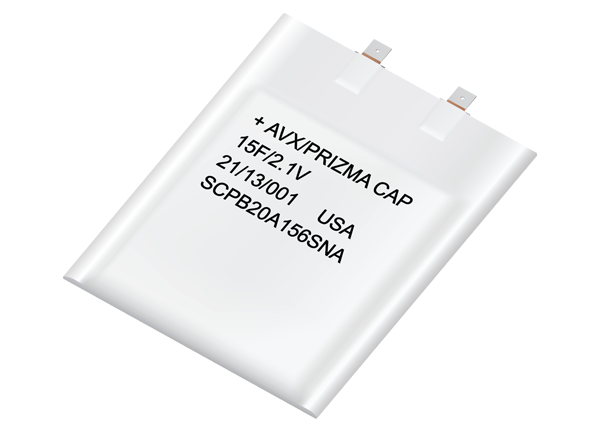

KYOCERA AVX PrizmaCap™ Capacitors use an activated carbon electrode, a propylene carbonate-based (PC) electrolyte with a paper separator, and SMT leads. The PrizmaCap current collector is made of a special low ESR-type aluminum. The PrizmaCap features a cell voltage of ~2.1V/cell with a 2.1V rated voltage. KYOCERA AVX PrizmaCap Capacitors offer a low profile with high energy, low ESR, low capacitance, and high-temperature capabilities with an operating temperature range of -55°C to +90°C.

Features

  • Low profile (0.5mm minimum height), 48mm x 45mm (LxW)
  • Large capacitance in prismatic form factor
  • High temperature
  • Lightweight design
  • Surface mount
  • Lead-free and RoHS compliant

Applications

  • Wearables
  • Handhelds
  • High-temperature industrial
  • BLUETOOTH® keyboard
  • Battery assist
  • Power peripherals
  • Tables/E-readers
  • High reliability
  • Space-constrained designs

Specifications

  • 2.16A to 8.63A peak current range
  • 110mΩ ESR maximum at 1kHz
  • 3.5F to 15F rated capacitance range
  • +30%/-10% tolerance
  • 2.1V rated voltage
  • 1413W/kg to 2582W/kg power density range
  • 0.0021Wh to 0.0092Wh maximum energy range
  • 1.14Wh/kg to 2.43Wh/kg energy density range
  • -55°C to +90°C operating temperature

Additional Resource

Published: 2017-10-19 | Updated: 2022-12-13
