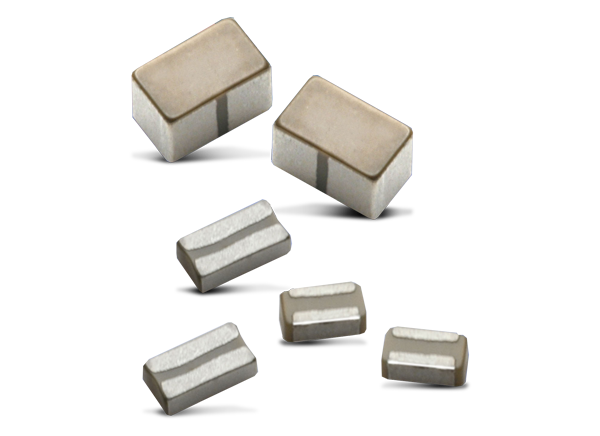

KYOCERA AVX Land Grid Array Ceramic Capacitors

KYOCERA AVX Land Grid Array (LGA) Ceramic Capacitors feature high-frequency performance equivalent to 8-terminal IDR capacitors. The LGA series features a 2-terminal package provides easier handling and design. These KYOCERA AVX capacitors are ideal for decoupling in semiconductor package-level and board-level applications.

Features

  • Delivers the performance of an 8-terminal IDC low-inductance MLCC with a number of advantages
  • Simplified layout of 2 large solder pads compared to 8 small pads for IDCs
  • Reduced PCB or substrate contribution to system ESL
  • Uniformly flat terminations on the capacitor that resist tombstoning
  • Better solder joint reliability

Applications

  • Semiconductor Packages
    • Microprocessors/CPUs
    • Graphics Processors/GPUs
    • Chipsets
    • FPGAs
    • ASICs
  • Board Level Device Decoupling
    • Frequencies of 300MHz or more
    • ICs drawing 15W or more
    • Low voltages
    • High-speed buses
