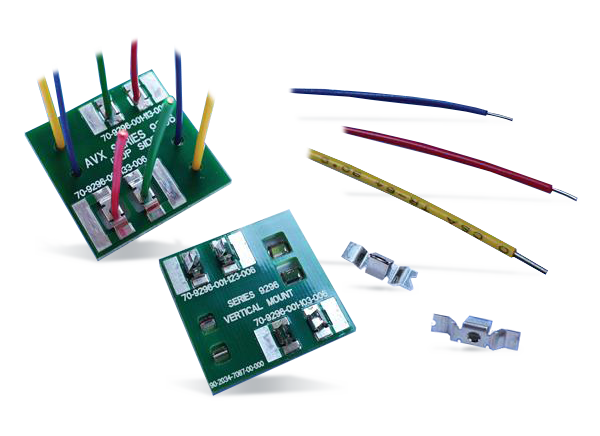

KYOCERA AVX 70-9296 Single Vertical Poke-Home Wire-to-Board (WTB) Contacts provide cost-effective, yet robust discrete wire termination without insulator and assembly costs. KYOCERA AVX 70-9296 contacts are characterized by top and bottom entry contacts that support both solid and stranded wires ranging from 24AWG to 18AWG and current ratings as high as 12A. A dual-beam contact provides maximum mechanical stability and wire retention. The set of four contacts provides both top and bottom entry for FR4 and metal core printed circuit boards.
Dual-beam contact provides maximum mechanical stability and wire retention
Staged current rating based on AWG, maximum is 12A (18AWG)
Tape-and-reel packaging for automated SMT placement
Increased functionality with the single contact placement: multiple contacts and/or specific individual locations
Voltage rating: 300V depending on placement distance
-40°C to +125°C operating temperature range
Phosphor bronze contact material
Pure tin contact plating
5 cycles durability
KYOCERA AVX 9296 Poke-Home Connectors & Contacts
Horizontal, vertical, and inverse mounted connectors that provide reliable wire-to-PCB solutions.
