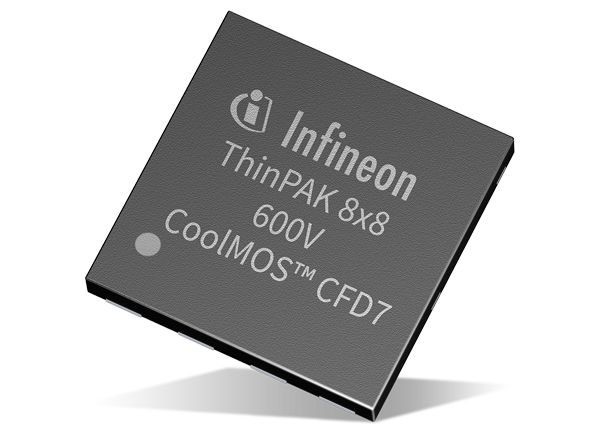

Infineon Technologies CFD7 CoolMOS™ MOSFETs
Infineon Technologies CFD7 CoolMOS™ MOSFETs are ideal for resonant high power topologies and feature high voltage superjunction MOSFET technology. The MOSFETs have an integrated fast body diode and completes the CoolMOS 7 series. Typical high power switch-mode power supply (SMPS) applications include server, telecom, and EV charging stations.
Features
- Ultrafast body diode
- Best-in-class reverse recovery charge
- Improved reverse diode dv/dt and diF/dt ruggedness
- Lowest FOM RDS(on)*Qg and EOSS
- Leading RDS(on)/package combinations
- Leading hard commutation ruggedness
- High reliability for resonant topologies
- High efficiency in target applications
- Enabling increased power density solutions
Applications
- Server
- Telecom
- EV charging
- SMPS
- PC power
Block Diagram
