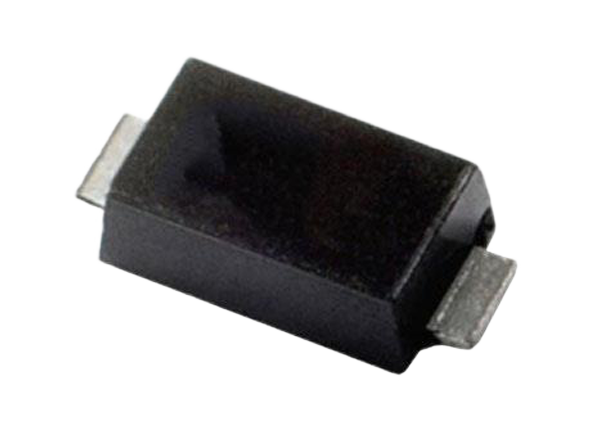

Eaton SMF 200W Transient Voltage Suppressors provide 200W peak pulse power capability at 10/1000μs waveform in a low-profile SOD-123FL package. They offer a fast response time, typically less than 1ps from 0V to VBR minimum, as well as excellent clamping capability and less than 1μA typical IR above 10V. These devices come in a plastic package that meets UL 94V-0 flammability requirements and is moisture sensitivity level (MSL) 1. Eaton SMF 200W Transient Voltage Suppressors are suitable for high-temperature reflow soldering (+260°C/40s at the terminal) and have terminals with solder-plated leads. The series is designed for surface-mounted applications to optimize board space. Applications include consumer electronics, telecommunications, computing and servers, appliances, industrial automation, mobile, and wearables.
Low-profile SOD-123FL package
Excellent clamping capability
200W peak pulse power capability at 10/1000μs waveform
Less than 1μA typical IR above 10V
Fast response time, typically less than 1ps from 0V to VBR minimum
High-temperature reflow soldering: +260°C/40s at the terminal
Plastic package meets UL 94V-0 flammability rating
Meets moisture sensitivity level (MSL) 1
Terminal: Solder-plated leads, solderable per J-STD-002
Designed for surface-mounted applications to optimize board space
Computing and servers
Mobile and wearables
