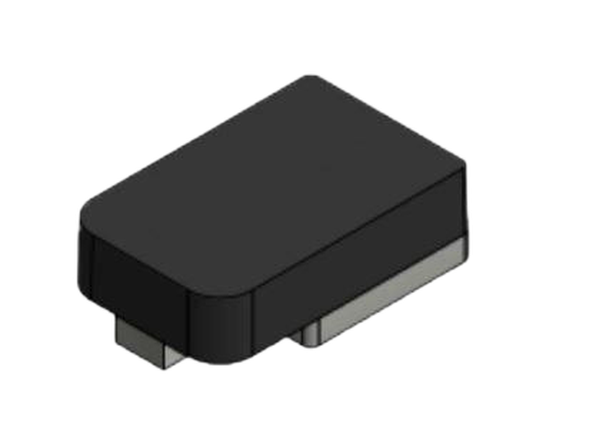

Eaton SM8SxxH Automotive TVS Diodes are AEC-Q101 qualified and offer a peak power rating of 6600W at 95.1A to 226A current range. These diodes feature low inductance, low leakage current, and excellent voltage clamping capability. The SM8SxxH diodes leverage a V-Groove interlock and dimple design that offers high reliability. These TVS diodes are available in a broad range of footprints designed with the DO-218AB package. The SM8SxxH diodes operate from 18V to 43V voltage range and -55°C to 150°C temperature range. Typical applications include networking systems and body electronics, ADAS and safety systems, automotive lighting, and battery management systems.
6600W peak power rating
95.1A to 226A peak current range
Low leakage current
Excellent voltage clamping capability
18V to 43V reverse standoff voltage range
-55°C to 150°C temperature range
Communication and infotainment systems
Networking systems and body electronics
Advanced Driver Assistance Systems (ADAS) and safety systems
Battery management systems
