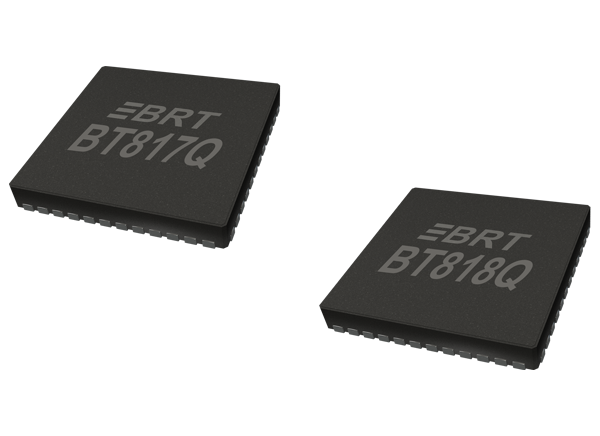

Bridgetek BT817/8 Advanced Embedded Video Engines

Bridgetek BT817/8 Advanced Embedded Video Engines (EVE) are easy-to-use graphic controllers designed for embedded applications to generate high-quality human machine interfaces (HMIs). The BT818 supports a 4-wire resistive touch screen while the BT817 supports a capacitive touch screen with up to 5 touchpoint detection. The BT817/8 series offers high-resolution graphics and video playback that allows users with little expertise to create high-quality displays. The modules support I/O voltage from 1.8V to 3.3V, and an internal voltage regulator supplies 1.2V to the digital core. Bridgetek BT817/8 Advanced Embedded Video Engines are available in a compact lead-free, VQFN-64 package and have an extended operating temperature range of -40°C to +85°C.

Features

Graphic control, audio control, and touch control interface
Supports multiple widgets
Built-in graphic operations
Supports Adaptive Scalable Texture Compression (ASTC) format
Supports 4-wire resistive touch screen (BT818) or capacitive touch screen with up to 5 touch point detection (BT817)
Enhanced sketch processing
Built-in 12MHz crystal oscillator with PLL providing programmable system clock up to 72MHz
Supports I/O voltage from 1.8V to 3.3V (5V tolerant)

Supported LCD resolutions include 1920x480, 1440x540, 1280x800, 1024x600, 800x600, 800x480, 480x272, 320x240 and many others
Internal voltage regulator supplies 1.2V to the digital core
Video RGB parallel output; configurable to support PCLK up to 96MHz with separate PLL(PLL2), and R/G/B output of 1 to 8 bits (including RGB565, RGB666, and RGB888)
Supports playback of motion-JPEG encoded AVI videos
Mono audio channel output with Sigma-delta
Built-in sound synthesizer
