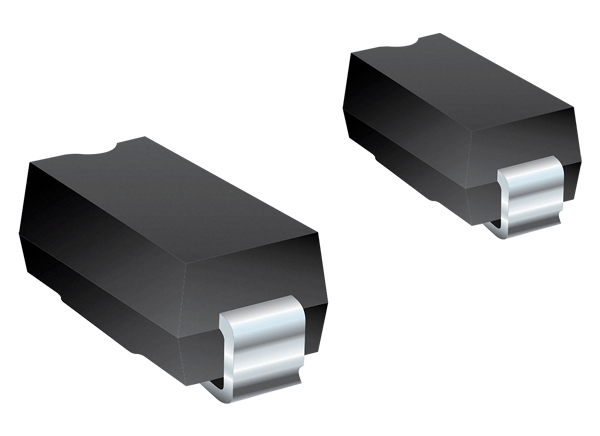

Bourns P6SMB-Q Transient Voltage Suppression Diodes
Bourns P6SMB-Q Transient Voltage Suppression Diodes are packaged in a compact DO-214AA (SMB) size format and are ideal for surge and ESD protection applications. The P6SMB-Q diodes offer breakdown voltages from 6.8V up to 250V within a -55°C to +150°C temperature range. Typical fast response times are less than 1.0 picosecond for unidirectional devices and less than 5.0 picoseconds for bidirectional devices from 0V to the minimum breakdown voltage.
Features
- Surface mount DO-214AA (SMB) package
- Halogen-free and RoHS compliant
- AEC-Q101 compliant
- Unidirectional or bidirectional
- MSL 1
- ESD classification 3B (HBM)
Applications
- Protection of power buses
- Protection of I/O interfaces
- Overvoltage transient protection
- Telecom
- Computer
- Industrial electronics
- Consumer electronics
Specifications
- 6.8V to 250V breakdown voltage
- 600W power dissipation
- 3.5V forward voltage
- -55°C to +150°C temperature range
- Molded plastic case, UL94V-0
