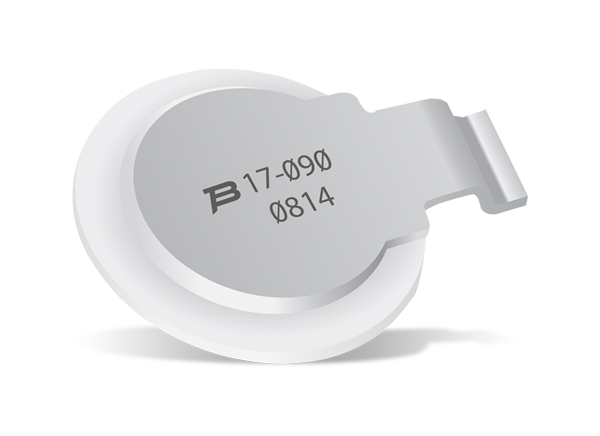

Bourns 2017 Gas Discharge Tube (GDT) Surge Arrestors with FLAT® Technology offer a 2-electrode GDT in an innovative flat-package design. Bourns FLAT technology delivers a low profile solution for high density and height-restricted PCB applications. Bourns 2017 surge arrestors are ITU K.12 Class III devices rated at 10kA on an 8/20µs waveform. The series is offered with DC breakdown voltages ranging from 90V to 420V and is available in horizontal and vertical surface-mount versions as well as a leadless design for cartridge or clamp fit applications.
10kA 8/20µs rated
Compact, horizontal, space saving design
Robust surge current ratings
Stable performance over the life
Low leakage and insertion loss
Constant capacitance regardless of voltage
Voltage limiting suitable for sensitive equipment
Low arc voltage
Wide range of voltages
Telecom Customer Premises Equipment (CPE)
Surge protective devices
High density PCB assemblies
Bourns FLAT® Gas Discharge Tube (GDT) Surge Arrestors
Deliver a low-profile solution for high-density and height-restricted PCB applications.
