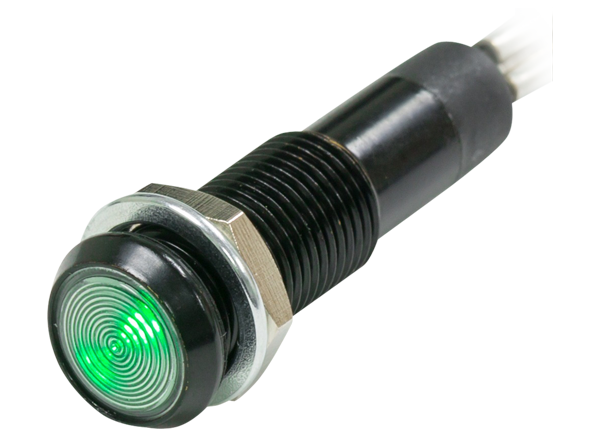

Bivar PM5-M124 LED panel mount indicators with the smart sensor technology automatically sense and adjust to provide the appropriate light output and intensity. PM5-M124 panel mount indicators are sunlight readable in bright lighting and feature auto-dimming in dark lighting. A water clear Fresnel lens (7mm) provides wide viewing angle capabilities and black anodized metal housing makes the indicators shock and vibration resistant for rugged applications. With a panel thickness ranging from 0.040" to 0.250" and a standard mounting hole size of 0.315", the Bivar PM5-M124 are fast and easy to install. Bivar PM5-M124 LED panel mount indicators also feature non-polarized quick disconnect terminal blades which also work as soldering lugs for wire connection.
Smart sensor technology
Sunlight readable in bright lighting
Auto-dimming in dark lighting
Wide viewing angle capabilities
Water clear Fresnel lens (7mm)
Solid color indication in green, blue, red, and yellow
Black anodized metal housing
Panel thickness ranging from 0.040" to 0.250"
Standard mounting hole size of 0.315"
Non-polarized quick disconnect terminal blades
Wide input range (12V to 24V)
Suitable for both AC and DC operation
Servers and server appliances
Test and measurement equipment
Electrical and control instrument panels
Military and utility vehicle dashboards
Commercial and communication control boxes
Wireless and power line infrastructure
Water and waste treatment equipment
BIVAR Panel Mount Indicators
Available in nylon, quick mount nylon, IP67 rated nylon, standard metal, IP67, & EMC UL rated metal.
