Signal Transformer / Bel SMD & Toroidal Inductor Design Kits

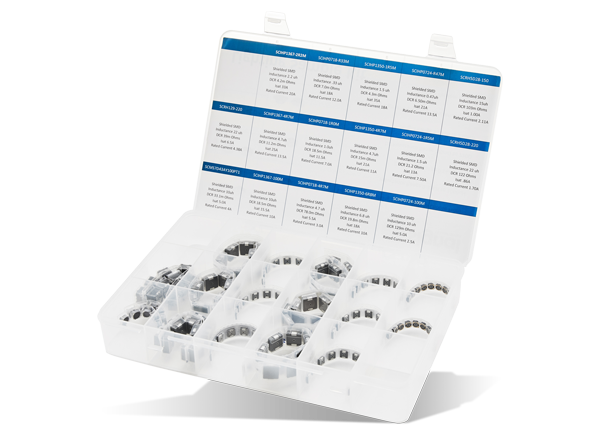

Signal Transformer / Bel SMD and Toroidal Inductor Design Kits contain various combinations of inductors found in the HCTC, HCTI, SCIHP, and SCRH family inductors. These kits feature high-current toroidal, multipurpose, or lighting designs. The inductor sample kits cover a range of voltages, current ratings, resistances, and inductance values, typically with ten components of each value.
Features
- Wide current and inductance ranges
- -55°C to +105°C/+125°C operating temperature ranges
- Vertical PCB or SMD mounting
- RoHS compliant
Featured Components
Signal Transformer / Bel HCTC High Current Toroidal Chokes
Designed for suppressing high-frequency electrical noise with high efficiency and reliability.
Signal Transformer / Bel HCTI High Current Toroidal Inductors
Vertical PCB mounted, high-frequency magnetics with a broad inductance and current range.
Signal Transformer / Bel SCRH Low Current SMD Inductors
Wirewound power inductors with a compact flat-top design and open-frame or shielded construction.
Signal Transformer / Bel SCIHP Shielded Inductors
High-frequency (up to 5MHz), high-current (2-48A) inductors with low DCR/µH in a small package.
Published: 2018-09-07
| Updated: 2022-10-24
