Bel Power Solutions ACC750 750W Industrial AC-DC Power Supplies

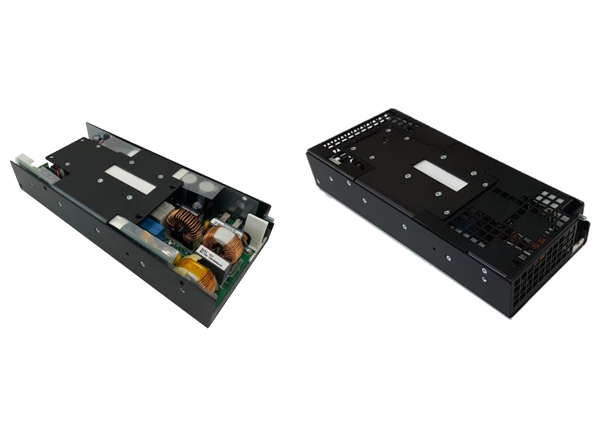

Bel Power Solutions ACC750 Series Industrial AC-DC Power Supplies provide up to 750W of regulated output power. The units have a wide input voltage range of 85VAC to 305VAC in single outputs of 24VDC or 48VDC. The power supplies offer natural convection cooling (without a fan) and are suitable for environments sensitive to acoustical noise. The series is available in two U-shaped 1.6” high packages, with and without a protective cover. The ACC750 Series supports digital power management over the power management bus communications protocol. Multiple units can be connected in parallel for redundancy and/or higher power, enabled with the internal ORing and current sharing functions. Bel Power Solutions ACC750 Series 750W Industrial AC-DC Power Supplies comply with the latest international safety standards and display the CE-Mark for the European low voltage directive (LVD).
Features
- Remote On/Off signal
- Low earth/touch leakage current
- Power management Bus communication protocol supported
- Built-in current sharing
- ORing for parallel operation and N+1 redundancy
- IEC 62368-1 ITE safety approval
- UL 8750LED LED lighting approval
Applications
- Video wall display, entertainment lighting
- LED lighting engine
- Industrial control systems
- Industrial laser applications
Specifications
- 85VAC to 305VAC universal input voltage range
- 750W rated power (900W peak)
- Up to 94% high efficiency
- 24VDC, 48VDC standard output voltages
- Stand by +12V, 0.5A and auxiliary 5V, 1A outputs
Published: 2020-07-10
| Updated: 2022-03-11
