ArduSimple simpleRTK2Blite Multiband GNSS Boards

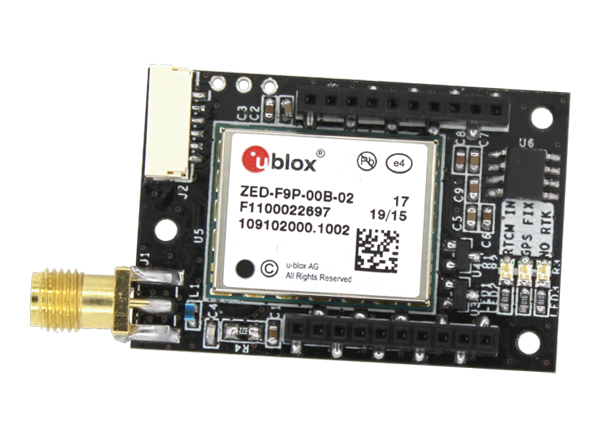

ArduSimple simpleRTK2Blite Multiband Global Navigation Satellite System (GNSS) Boards are based on the u-blox ZED-F9P module. The board can work as a standalone product to provide cm level precision or as moving base in combination with the simpleRTK2B board to provide extremely accurate heading. The series offers <1cm precision (1σ) with base-rover configuration, <1cm precision (1σ) with standalone configuration with NTRIP corrections, or <10cm precision (1σ) with standalone configuration with SSR corrections. simpleRTK2Blite supports different operating modes and is extremely flexible and compatible with existing radios and simpleRTK2B boards. ArduSimple simpleRTK2Blite Multiband Global Navigation Satellite System (GNSS) Boards can be used for drones and ultra-lightweight applications.
Features
- Works as a standalone board (one board operation without radio)
- Works in base-rover/base-multi rover configuration
- Works in moving base configuration (combined with a simpleRTK2B)
- Runs with ZED-F9P GNSS module, check these two links for detailed information: u-blox description and u-blox product summary
- The ZED-F9P GNSS module can be configured via UART1 (with supplied UART to USB converter) and u-blox u-center application
- RTCM IN, NO RTK, and GPS FIX LEDs
Specifications
- XBee form factor 41x28mm, weighing 7.8g
- Supports all XBee radio modules via 2mm 10 pin headers
- External GNSS SMA connector
- External JST-GH 6 pin connector for Pixhawk users
- EXTINT pin available
- Can be powered via XBee headers / regulated source @ 3.3V
- Can be powered @5V via the JST-GH (Pixhawk) connector
- Protected against GNSS antenna short circuit
- Power consumption
- 80mA @ 3.3V without antenna
- 100mA @ 3.3V with ANN-MB-00 antenna
Layout
