Aptiv HV RCS 890 SW Connectors

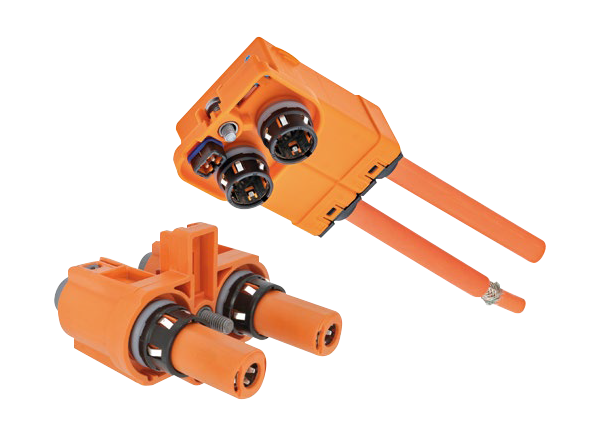

Aptiv HV RCS 890 SW Connectors are high-voltage (HV) connectors designed for compact environments. The series features 600VDC maximum voltage and 210A maximum current. Aptiv HV RCS 890 SW Connectors also provide high-water protection resulting from its sealed unmated header. These connectors include a slider feature that offers easy assembly and maximum pressure surface in limited-space conditions.
Features
- Designed for compact environments
- High-water protection resulting from sealed unmated headers
- Easy assembly thanks to slider feature on female connector
- Header has flat and simple device interface
- Slider solution offers maximum pressure surface in limited-space conditions
- Connectors dismount in two steps for a time delay between interlock opening and power disconnection
Applications
- AC/DC inverters
- DC/DC converters
- HV batteries
- Power electric boxes
- HV power-distribution units
Specifications
- Wire-to-device connector type
- 90° cable exit orientation
- 35mm2 to 70mm2 cable range
- Two power terminals
- -40°C to +125°C temperature range
- IP2XB electrical protection
- 600VDC maximum voltage
- 210A maximum current at +85C
- V1 vibration level
- IP67 / IP6K9K sealing class
Performance Capabilities
