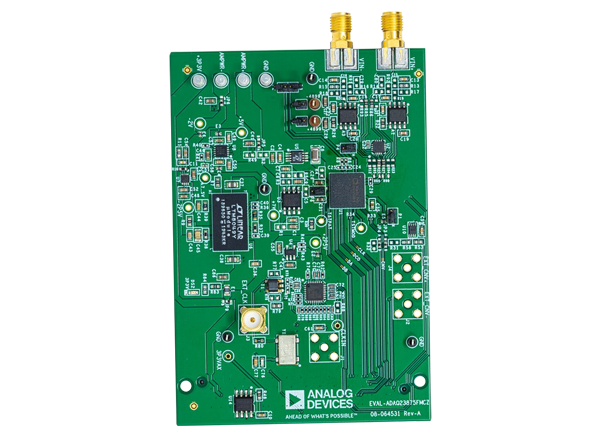

Analog Devices Inc. EVAL-ADAQ23875FMCZ Evaluation Board

Analog Devices Inc. EVAL-ADAQ23875FMCZ Evaluation Board provides a demonstration and development platform for the ADAQ23875 μModule® Data Acquisition Solution. The ADAQ23875 μModule combines multiple common signal processing and conditioning blocks in a single device that includes a low noise, fully differential Analog-to-Digital Converter (ADC) driver, a stable reference buffer, a high resolution, 16-bit, 15 MSPS Successive Approximation Register (SAR) ADC, and the critical passive components necessary for optimum performance.

The EVAL-ADAQ23875FMCZ Evaluation Board includes a pre-mounted ADAQ23875 in a BGA100 package, a choice of a 4.096V or 2.048V reference, onboard power supplies to derive the necessary supply rails, and an 800MHz clock distribution IC.

The Analog Devices Inc. EVAL-ADAQ23875 Evaluation Board is designed to work in conjunction with the EVAL-SDP-CH1Z High-Speed Controller Board. The EVAL-ADAQ23875 Evaluation Board interfaces with the EVAL-SDP-CH1Z Board via a 160-pin connector on the bottom of the PCB. The EVAL-SDP-CH1Z Board requires power from a 12V wall adapter. The High-Speed Controller Board has a Xilinx® Spartan 6 and an ADSP-BF527 processor with connectivity to a PC through a USB 2.0 high-speed port. The High-Speed Controller Board allows the configuration and capture of
data on the daughter boards from the PC via a USB.

Features

Evaluates the ADAQ23875 μModule Data Acquisition Solution
Designed to work with the EVAL-SDP-CH1Z High-Speed Controller Board
PC GUI software enables control and data analysis of time and frequency domain
Versatile analog signal conditioning circuitry
Onboard reference, LDO, and power supply circuits
Jumpers enable the choice of a voltage reference, power supply, and optional amplifier circuits
SMA connectors enabling analog input from a low noise, audio precision signal source
SMA connector for optional external clock
Test points and single in-line headers providing access to onboard signals

Key components
- AQ23875 μModule in a BGA100 package
- LTC6655 Voltage Reference
- ADR4520 Voltage Reference
- LTM8049 Inverting μModule DC-DC Converter
- AD9513 800MHz Clock Distribution IC
- ADP7118 LDO Voltage Regulator
- ADP7183 LDO Voltage Regulator
- LT3023 LDO Voltage Regulator
- ADA4899 High-Speed Operational Amplifier
- ADG774 Quad 2:1 Mux

Required Equipment

PC running Windows 10 or higher
EVAL-SDP-CH1Z High-Speed Controller Board (SDP-H1)
Low-noise, precision signal source (such as SYS-2700 series)

Standard USB A to USB Mini-B cable
Band-pass filter suitable for 16-bit testing (value based on signal frequency)

ACE Software

The Analog Devices Inc. Analysis | Control | Evaluation (ACE) Software is a desktop software application that allows the evaluation and control of multiple evaluation systems across ADI’s product portfolio. The application consists of a common framework and individual component-specific plug-ins.

The ACE Software is designed to educate the user in the functional operation of the component and allow the user to access the system at a level of abstraction with which they are comfortable.
