Analog Devices Inc. Electromagnetic Interference (EMI) compliance is often mandatory and a critical design challenge for medical, automotive, test, and measurement equipment manufacturers. For example, if a device fails EMI compliance, it not only creates a long design cycle, it also increases cost as a result of re-design and re-evaluation for EMI compliance. To overcome these challenges, Analog Devices offers Silent Switcher® Architecture which minimizes the risk of problems caused by EMI, making µModule® Regulators and Discrete DC-DC ideal for noise-sensitive applications.
The Silent Switcher architecture offers high efficiency at high switching frequencies ( >2MHz) with ultralow Electromagnetic Interference (EMI) emissions, offering very compact solutions while optimizing high efficiency at light load with ultra-low quiescent current. The Silent Switcher family uses special design and packaging techniques to offer 95% efficiency at 2MHz while easily passing the CISPR 25 Class 5 Peak EMI limits.
The Silent Switcher 2 Regulators’ design, exceptional EMI/EMC performance, and small overall solution size eliminate PCB layout sensitivity. The features of the Silent Switcher 2 Regulator series allow these devices to be used on any PCB, simplify product design, and reduce risks even when using two layer PC boards.
Features
- Silent Switcher® 2 Architecture
- Ultralow EMI/EMC Emissions on Any PCB
- Eliminates PCB Layout Sensitivity
- Internal Bypass Capacitors Reduce Radiated EMI
- Optional Spread Spectrum Modulation
- Selectable Switching Frequency: 200kHz to 3MHz
- Parallelable for increased output current
- Multi output configuration
- Ultralow Quiescent Current and output ripple in Burst Mode operation
- Four operating modes: burst mode, pulse skip mode, forced continuous mode and external synchronization mode)
- Lower output ripple

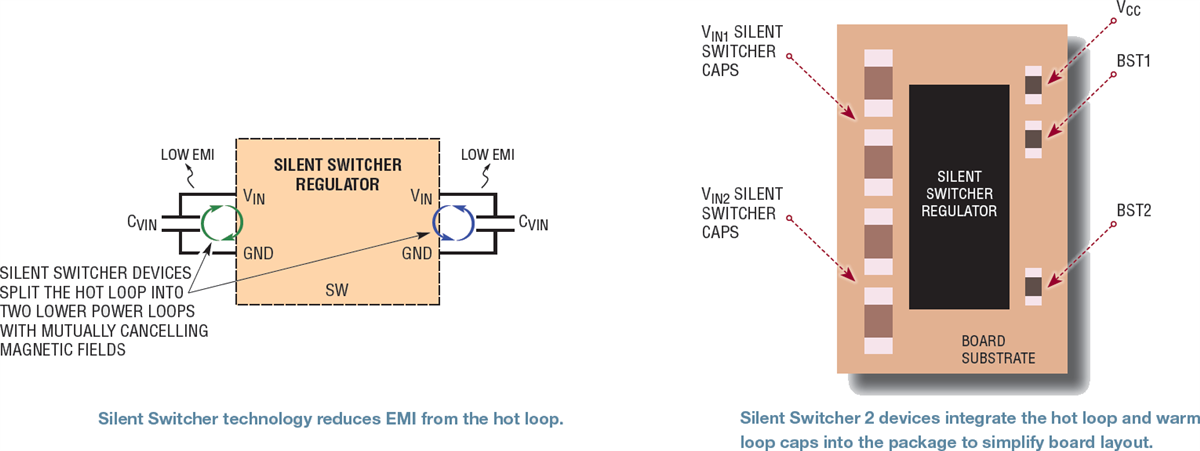

Coupled Hot Loops
Confined Magnetic Field
Applications
- Automotive
- Automotive Always-On Systems
- Automotive Cold-Crank
- Automated Test Equipment
- Distributed Supply Regulation
- Industrial, Test and Measurements
- Medical Equipment
- Signal Processing Applications
- Imaging and RF System
Videos
Featured Silent Switcher ICs
Analog Devices Inc. LT8638S Synchronous Step-Down Silent Switcher® 2
42V 10A/12A step-down DC-DC converter based on second generation Silent Switcher technology.
Analog Devices Inc. LT8653S Dual Step-Down Regulators
Deliver up to 2A of continuous current from both channels and supports loads up to 3A.
Analog Devices Inc. LTC3310S Synchronous Step-Down Silent Switcher® 2
Are capable of providing up to 10A of output current from a 2.25V to 5.5V input supply.
Analog Devices Inc. LT8642S/LT8642-1 Step-Down Silent Switchers 2
Features 2nd-gen architecture, designed to minimize EMI emissions while delivering high efficiency.
FEATURED µMODULE REGULATORS
Analog Devices Inc. LTM8060 Silent Switcher® μModule® Regulator
Quad 40VIN, Silent Switcher® μModule® Regulator with a configurable 3A output array.
Analog Devices Inc. LTM8074 40VIN Silent Switcher µModule Regulator
40VIN, 1.2A continuous, 1.75A peak, high efficiency at frequencies up to 2.2MHz.
Analog Devices Inc. LTM8078 40VIN Silent Switcher® µModule® Regulator
Dual 1.4A/single 2.8A, high efficiency at frequencies of up to 3MHz.
Analog Devices Inc. LTM8024 40VIN Silent Switcher µModule Regulator
40VIN, Dual 3.5A or Single 7A, high efficiency at frequencies up to 3MHz.
Featured Evaluation Kits
Analog Devices Inc. DC2851A Evaluation Kit
Quad-channel synchronous monolithic step-down regulator featuring the LT7200S regulator.
