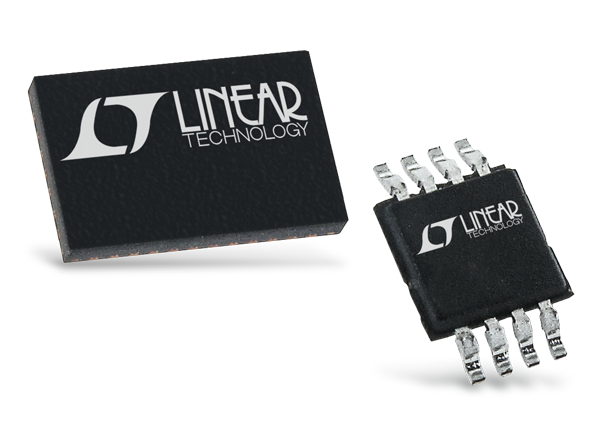

Analog Devices Inc. LT6015 Over-The-Top® Precision Op Amps

Linear Technology/Analog Devices LT6015 Over-The-Top® Precision Op Amps feature a 50µV input offset voltage and operate on single and split supplies with a total voltage of 3V to 50V. The LT6015 draw only 315μA per amplifier and are reverse battery protected, drawing very little current for reverse supplies up to 50V. The Over-The-Top input stage of the LT6015 is designed to provide added protection in tough environments. The LT6015 is offered in a 5-lead SOT package.


  • V- to V- + 76V Input Common Mode Range
  • Rail-to-Rail Input and Output
  • 315μA/Amplifier Low Power
  • -55°C to 150°C Operating Temperature Range
  • ±50μV (Maximum) VOS
  • 126dB CMRR, PSRR
  • Reverse Battery Protection to 50V
  • 3.2MHz Gain Bandwidth Product
  • Specified on 5V and ±15V Supplies
  • 1000V/mV High Voltage Gain
  • No Phase Reversal
  • No Supply Sequencing Problems
  • Single 5-Lead SOT-23 (ThinSOT™) Package
  • Dual 8-Lead MSOP
  • Quad 22-Lead DFN (6×3mm)


  • High-Side or Low-Side Current Sensing
  • Battery/Power Supply Monitoring
  • 4mA to 20mA Transmitters
  • High Voltage Data Acquisition
  • Battery/Portable Instrumentation

Block Diagram

Application Circuit Diagram - Analog Devices Inc. LT6015 Over-The-Top® Precision Op Amps
