Analog Devices Inc. HMC8411 Low Noise Amplifier

Analog Devices Inc. HMC8411 Low Noise Amplifier is a gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC), pseudomorphic high electron mobility transistor (pHEMT), low-noise wideband amplifier. The device operates from 0.01GHz to 10GHz. The HMC8411 has a typical gain of 15.5dB, a 1.7dB typical noise figure, and a typical output third-order intercept (OIP3) of 34dBm. It requires only 55mA from a 5V supply voltage.


  • Low noise figure: 1.7dB typical
  • Single positive supply (self biased)
  • High gain: 15.5dB typical
  • High OIP3: 34dBm typical

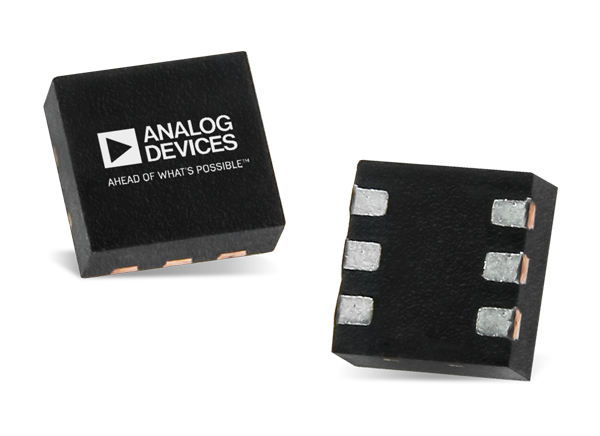

  • 6-lead, 2mm x 2mm LFCSP
  • RoHS compliant


  • Test instrumentation
  • Military communications

Technical Articles

Block Diagram

Block Diagram - Analog Devices Inc. HMC8411 Low Noise Amplifier
Published: 2019-08-20 | Updated: 2023-04-12
