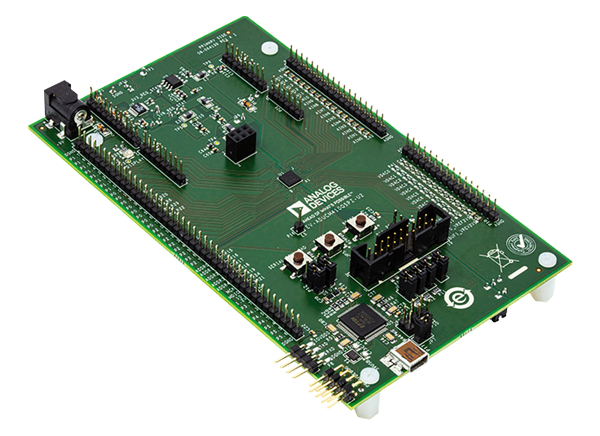

Analog Devices Inc. EVAL-ADUCM410QSPZ Evaluation Board
Analog Devices Inc. EVAL-ADUCM410QSPZ Evaluation Board is used to evaluate the features of the ADuCM410 high precision analog microcontroller. The ADuCM410 includes 16 external AINx channels, voltage-output DACs (VDACs), and four programmable gain amplifiers (PGAs). It also features the measurement of the PGA current channels and various shared functions with the general-purpose input/outputs (GPIOs) that are configurable through registers. The VDAC channels generate an output range up to 2.5V or 3.3V full scale.
Features
- Interface through mIDAS-Link emulator
- Power supply options: 9V wall-wart adapter, 5V external supply terminal block, or USB supply
- ADuCM410 development system facilitates performance evaluation of the ADuCM410 with a minimum of external components
Overview
