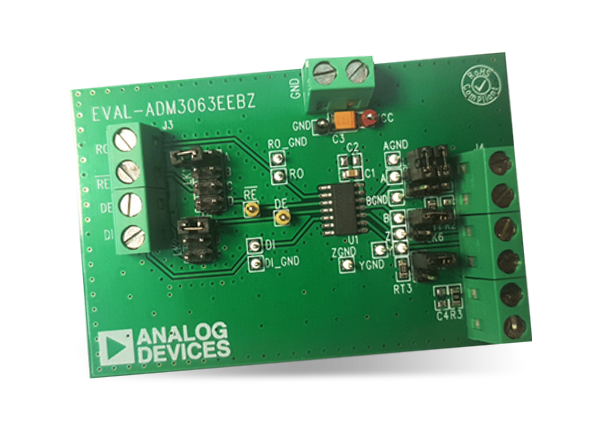

Analog Devices Inc. EVAL-ADM3063E Evaluation Board
Analog Devices EVAL-ADM3063E Evaluation Board allows for quick and easy evaluation of the ADM3063E 500kbps, RS-485 transceiver with standard, 14-lead SOIC_N footprint. The evaluation board allows the input and output functions to be exercised without external components. Screw terminal blocks provide convenient connections for power and ground, digital input and output, and RS-485 signals. The evaluation board can be powered by a standard configurable bench power supply within the 3.0V to 5.5V range.
The EVAL-ADM3063EEBZ evaluation board has a footprint for the ADM3063EBRZ full-duplex, RS-485 transceiver in a 14-lead SOIC_N package.
Features
- Easy evaluation of ADM3063E 500kbps, RS-485 transceiver
- Board layout for standard, full-duplex, RS-485 footprint
- 14-lead SOIC, ADM3063EBRZ
- Power/ground connections through screw terminal block
- 3.0V to 5.5V operating voltage range on VCC
- IEC61000-4-2 ESD protection on the RS-485 A, B, Y and Z bus pins
- ±12kV contact discharge and ±12kV air discharge
- Screw terminal blocks for logic input/output and RS-485 signals
- Jumper-selectable enable/disable for RE and DE
- Test points for measuring all signals
- Resistors and footprints for termination and biasing networks
Associated Product
Analog Devices Inc. ADM306x Interface RS-485 Transceivers
3-5.5V, ±12kV IEC ESD, 500kbps/50Mbps RS-485 transceivers for harsh environments.
