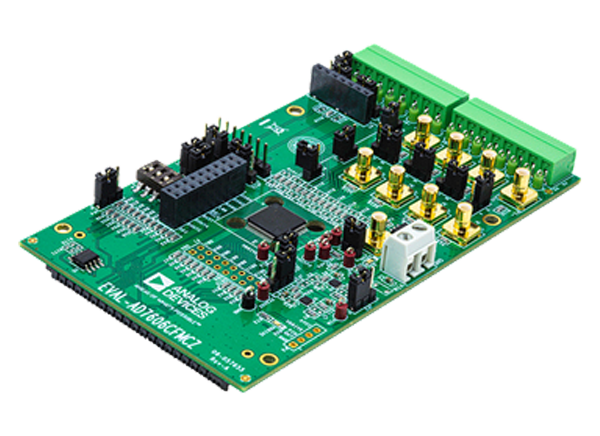

Analog Devices Inc. EVAL-AD7606CFMCZ Evaluation Board allows users to evaluate the features of the AD7606C-18 and AD7606C-16 analog-to-digital converters (ADCs). The EVALAD7606CFMCZ is controlled by the EVAL-SDP-CH1Z (SDP-H1) system demonstration platform (SDP). The SDP-H1 controls the EVAL-AD7606CFMCZ through the USB port of a PC using the Analysis | Control | Evaluation (ACE) software.
The ADI EVAL-AD7606CFMCZ Evaluation Board includes the ADP7118 5V and 3.3V low noise, low dropout (LDO) linear regulators, and an ADR4525 high precision bandgap voltage reference.
Fully featured evaluation board for the AD7606C-18 and the AD7606C-16
On-board power supplies
PC software for control and data analysis
Time and frequency domain
EVAL-SDP-CH1Z (SDP-H1) high speed controller board
Windows Vista SP2 (32-bit or 64-bit)
Windows 7 SP1 (32-bit or 64-bit)
Windows 8.1 (32-bit or 64-bit)
Windows 10 (32-bit or 64-bit) with a USB 2.0 port
DC and AC signal source
SMB and USB cables
External supply (optional)
Analog Devices Inc. AD7606C-18 8-Channel DAS with 18-bit 1 MSPS ADC
18-bit, simultaneous sampling, analog-to-digital Data Acquisition System (DAS) with eight channels.
