Analog Devices Inc. LTC3310 Demo Board DC3042A

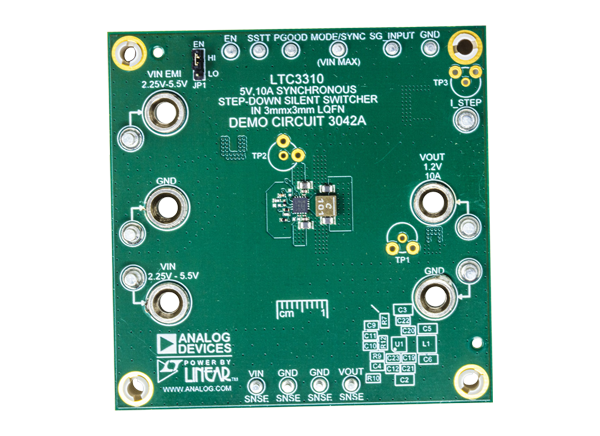

Analog Devices Inc. LTC3310 Demo Board DC3042A is designed to demonstrate the LTC3310, a 10A low voltage synchronous step-down Silent Switcher®. This demo board operates in the forced continuous mode with a 2MHz switching frequency and can be configured to the pulse-skipping mode and different switching frequencies. The DC3042A demo board features an EMI filter that reduces the conducted EMI. This demo board operates at 2.25V to 5.5V input voltage range and 1.183V to 1.217V output voltage range.
Features
- Demonstrates LTC3310 silent switcher
- 2MHz switching frequency
- EMI filter
- 2.25V to 5.5V input voltage range
- 1.183V to 1.217V output voltage range
- 1.8MHz to 2.2MHz switching frequency range
Related Product
Analog Devices Inc. LTC3310S Synchronous Step-Down Silent Switcher® 2
Are capable of providing up to 10A of output current from a 2.25V to 5.5V input supply.
