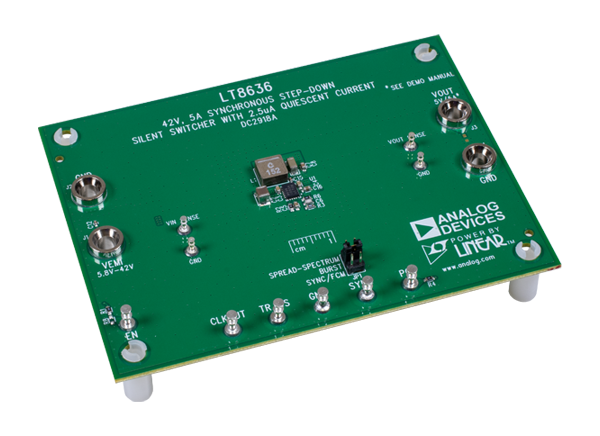

Analog Devices Inc. DC2918A Demo Board is a 42V, 5A synchronous stepdown SILENT SWITCHER with spread spectrum frequency modulation featuring the LT8636. The LT8636 is a compact, low emission, high efficiency, and high frequency synchronous monolithic step-down switching regulator. The proprietary silent switcher architecture minimizes electromagnetic emissions with a simplified filter and reduces layout sensitivity. The DC2918A Demo Board is designed for 5V output from a 5.8V to 42V input. This wide input range allows a variety of input sources, such as automotive batteries and industrial supplies.
1.85MHz to 2.15MHz switching frequency
5A maximum output current
4.85V to 5.15V output voltage
5.8V to 42V input supply range with EMI filter
Analog Devices Inc. LT8636x/LT8637x Synch Step-Down Regulators
Feature Silent Switcher® architecture designed to minimize EMI emissions.
