Analog Devices Inc. DC2672A-B Demo Circuit for LTM4664 Regulator

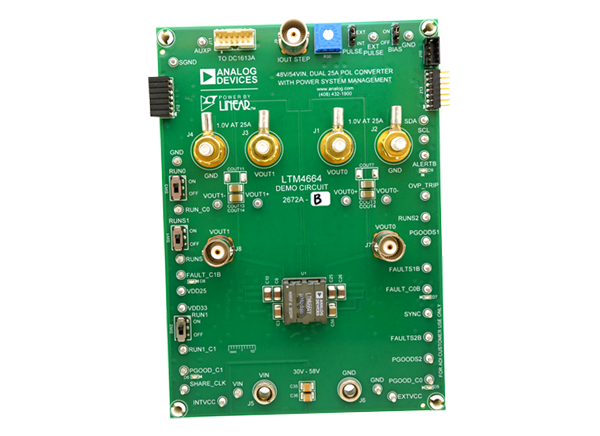

Analog Devices Inc. DC2672A-B Demo Circuit for LTM4664 Regulator is a complete non-isolated, dual-output, high-efficiency, and high-density µModule regulator with 30V to 58V input range. Each output can supply 25A maximum load current. The circuit is designed to evaluate LTM4664 µModule regulator (dual 25A or single 50A step-down regulator) with digital power system management. The DC2672A-B powers up to default settings and offers power based on configuration resistors without the need for any serial bus communication. This allows for easy evaluation of the DC/DC converter.
Features
- Evaluates LTM4664 μModule® regulators
- Non-isolated 48V dual-output, high efficiency, and high-density µModule regulator
- Powers up to default settings
- Produces power based on configuration resistors without the need for any serial bus communication
Specifications
- 30V to 58V wide input voltage range
- 25A maximum load current
- 250KHz default switching frequency
Associated Product
Analog Devices Inc. LTM4664 Step-Down µModule® Regulator
Complete non-isolated 48V input high-efficiency regulator with dual 25A outputs.
