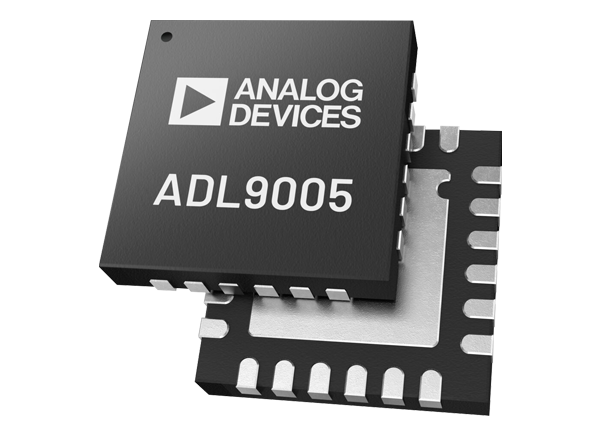

Analog Devices Inc. ADL9005 Wideband Low Noise Amplifier

Analog devises Inc. ADL9005 Wideband Low Noise Amplifier (LNA) is a Gallium Arsenide (GaAs), Monolithic Microwave-Integrated Circuit (MMIC), and pseudomorphic High-Electron Mobility Transistor (pHEMT) RF amplifier. This LNA operates within 0.01GHz to 26.5GHz frequency range and provides a typical gain of 17.5dB from 0.01GHz to 14GHz with a positive gain slope from 14GHz to 20GHz. The ADL9005 LNA also offers a 13.5dBm typical output power at 1dB compression (OP1dB) from 0.01GHz to 20GHz and 2.5dB typical noise figure from 0.01GHz to 14GHz. Additionally, a typical output third-order intercept (OIP3) of 26dBm is achieved from 0.01GHz to 14GHz range requiring just 80mA from a single 5V supply voltage.

The ADL9005 wideband low noise amplifier features inputs and outputs (I/Os) that are internally matched to 50Ω. This makes it ideal for Surface-Mounted Technology (SMT)-based, high capacity microwave radio applications, test instrumentation, military, and communications. The ADL9005 amplifier is housed in a RoHS-compliant LFCSP package with 4mm×4mm dimensions.


  • Gallium Arsenide (GaAs) and Monolithic Microwave-Integrated Circuit (MMIC)
  • pseudomorphic High-Electron Mobility Transistor (pHEMT)
  • Low noise figure:
    • 2.5dB typical from 0.01GHz to 14GHz
  • High gain:
    • 17.5dB typical from 0.01GHz to 14GHz
  • Single positive supply
  •  OP1dB:
    • 13.5dBm typical from 0.01GHz to 20GHz
  • High OIP3:
    • 26dBm typical from 0.01GHz to 14GHz
  • RoHS-compliant 24-lead LFCSP (4mm × 4mm) package


  • Test instrumentation
  • Military
  • Communications

Typical Circuit Diagram

Application Circuit Diagram - Analog Devices Inc. ADL9005 Wideband Low Noise Amplifier
Published: 2021-03-17 | Updated: 2022-03-11
