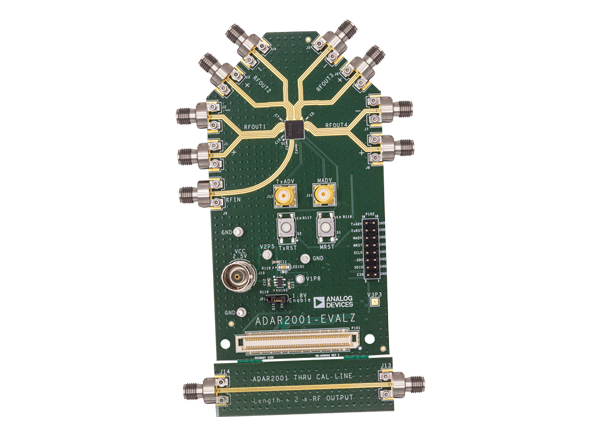

Analog Devices Inc. ADAR2001 Evaluation Board is used to test the performance of the ADAR2001 4-channel 4x Frequency Multiplier/Filter. The ADAR2001 is designed for mmWave security imaging applications. All RF input/outputs are brought out to 2.92mm (K) coaxial connectors. On-board logic level translators convert between the external logic level and the on-chip level of 1.8V. There is an Analog Devices System Demonstration Platform (SDP) connector which is used in conjunction with an SDP controller board to manipulate the internal registers and cycle through the programmed modes of the two internal state machines.
• ADAR2001-EVALZ Evaluation Board • PC running Windows XP or higher • SDP-S USB interface board • Network Analyzer ≥ 40GHz • Spectrum Analyzer ≥ 40GHz • Signal Generator ≥ 10GHz • Power Supply: 2.5V, ≥ 1A
Analog Devices Inc. ADAR2001 4-Channel Transmitter (10GHz to 40GHz)
Transmitter IC optimized for millimeter-wave body scanning applications.
