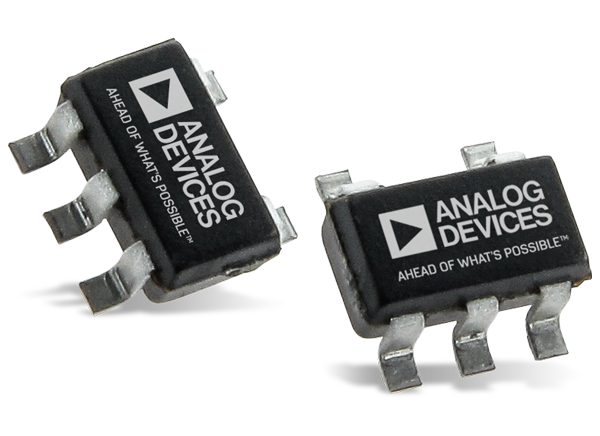

Analog Devices Inc. LT®1964 Low Dropout Negative Regulator
Analog Devices LT®1964 Low Dropout Negative Regulator is capable of supplying 200mA of output current with a dropout voltage of 340mV. The LT1964 has a low quiescent current (30μA operating and 3μA shutdown), making it an excellent choice for battery-powered applications. Quiescent current is well controlled in a dropout. The LT1964 also features low output noise and an external 0.01μF bypass capacitor. Output noise is reduced to 30μVRMS over a 10Hz to 100kHz bandwidth.
Features
- Low noise at 30μVRMS (10Hz to 100kHz)
- Low quiescent current at 30μA
- Low dropout voltage at 340mV
- Output current at 200mA
- Fixed output voltage at -5V
- Adjustable output from -1.22V to -20V
- Positive or negative shutdown logic
- 3μA Quiescent current in shutdown
- Stable with 1μF output capacitor
- Stable with aluminum, tantalum, or ceramic capacitors
- Thermal limiting
- Low profile (1mm) ThinSOT™ and (0.75mm) 8-Pin 3mm x 3mm DFN packages
Applications
- Battery-powered instruments
- Low noise regulator for noise-sensitive instrumentation
- Negative complement to LT1761 family of positive LDOs
Related Products
Analog Devices Inc. Negative Linear Regulators
Regulators with very low dropout, fast transient response, excellent line and load regulation.
Development Tools
Analog Devices Inc. SCP-LT1964-EVALZ Signal Chain Evaluation Board
Demonstration circuit based on the LT1962 300mA Low Dropout Negative Linear Regulator.
Typical Application Circuit
