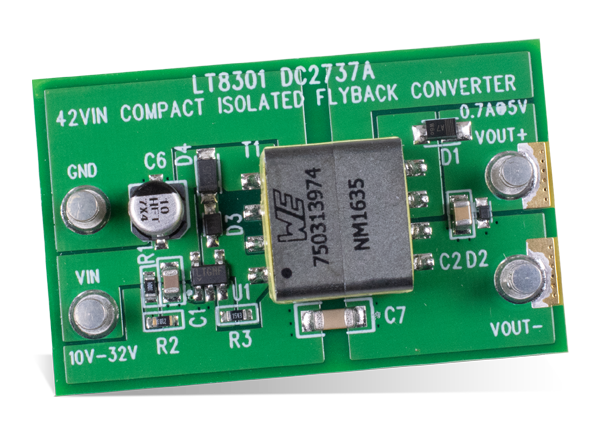

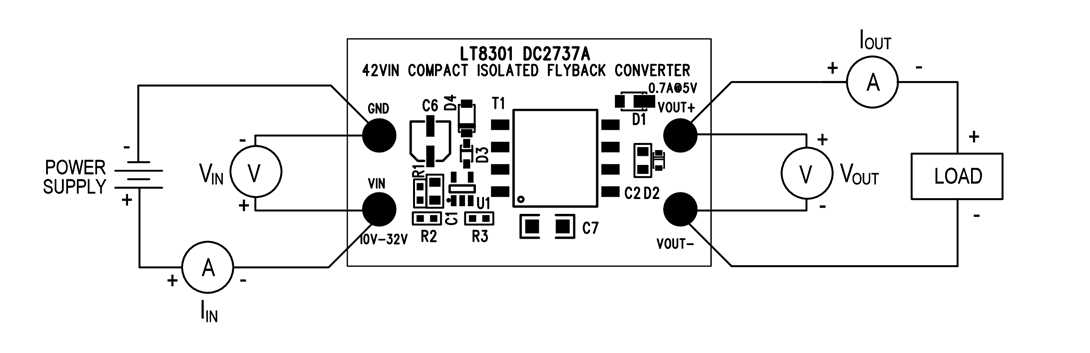

Analog Devices Inc. 2737A Demonstration Circuit is an isolated flyback converter featuring the LT8301. The demo circuit outputs 5V from input 10V to 32V, with a nominal 24V. The outputcurrent capability increases with the input voltage. The standby input current of the demo circuit is less than 950µA (typical) at VIN = 24V.
700mA or 1000mA maximum output current
90mV output voltage ripple (peak to peak)
190kHz switching frequency
Analog Devices Inc. LT8301 / LT8302 Isolated Flyback Converters
Sample the isolated output voltage directly from the primary-side flyback waveform.
