ams OSRAM TMF8801-EVM Evaluation Kit

ams OSRAM TMF8801-EVM Evaluation Kit is configured to evaluate the operation of the TMF8801 1D ToF sensor. The TMF8801 1D Time-of-Flight Sensor offers highly accurate depth accuracy detection through a sub-nanosecond light pulse and an anti-aliasing "stop-watch" method to measure the round-trip time of the pulse.

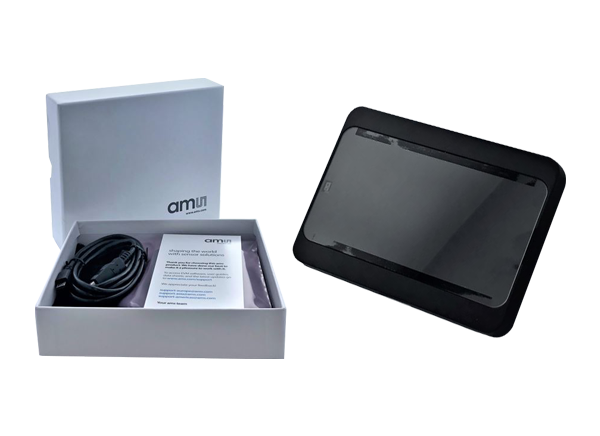

The ams OSRAM TMF8801-EVM Evaluation Kit includes a ToF sensor enclosure and sample glass, USB type A to micro-USB cable, USB Flash drive with EVM GUI software, and EVM documentation.

Kit Contents

  • ToF Sensor enclosure
  • Sample glass
  • USB type A to micro-USB cable
  • USB Flash drive with EVM GUI software and EVM documentation

Resources

Supported Devices

TMF8801 1D Time-of-Flight Distance Sensors

ams OSRAM TMF8801 1D Time-of-Flight Distance Sensors

Time-of-Flight sensors with 945nm integrated IR VCSEL in a 2.2mm x 3.6mm optical module (1.8V, I2C).

Learn Moreabout ams OSRAM TMF8801 1D Time-of-Flight Distance Sensors View Productsrelated to ams OSRAM TMF8801 1D Time-of-Flight Distance Sensors

Daughter Board Overview

Location Circuit - ams OSRAM TMF8801-EVM Evaluation Kit

View TMF8801 Daughter Board

Videos

Published: 2020-08-12 | Updated: 2023-04-24
