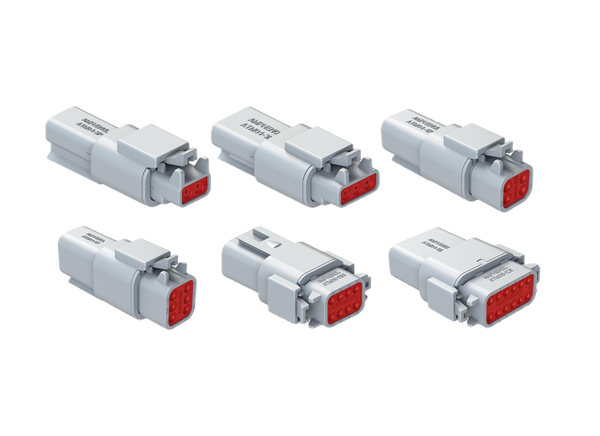

Amphenol Sine Systems ATM Series™ Automotive Connectors
Amphenol Sine Systems ATM Series™ Connectors are an IP68- and IP69K-rated (mated), high-performance, cost-effective solution designed for smaller AWG applications, while still maintaining the strengths of the AT Series™ product line. ATM Series connectors are compatible with all other existing standard products industry-wide. The connector design incorporates an integral latching system to ensure a definitive electrical and mechanical connection. Amphenol Sine Systems housings are manufactured with a thermoplastic material that is not only durable but also offers excellent UV resistance, dielectric/mechanical properties, and is environmentally RoHS compliant. The sealing system is comprised of an internal and rear silicone, multi-sealing perimeter against environmental ingress. Contacts are constructed from quality copper alloy to ensure an electrically reliable connection.
Features
- Available in 2, 3, 4, 6, 8, and 12 positions
- 22AWG to 16AWG, 7.5A, size 20
- Thermoplastic housing with integrated latch for mating
- High-temperature silicone seals provide superior sealing
- Wedgelocks ensure proper contact alignment and retention
- Compatible with existing standard products industry-wide
Applications
- Marine
- Heavy equipment
- Agricultural
- Automotive
- Alternative energy
