Amphenol Industrial RIG-Lok Connectors

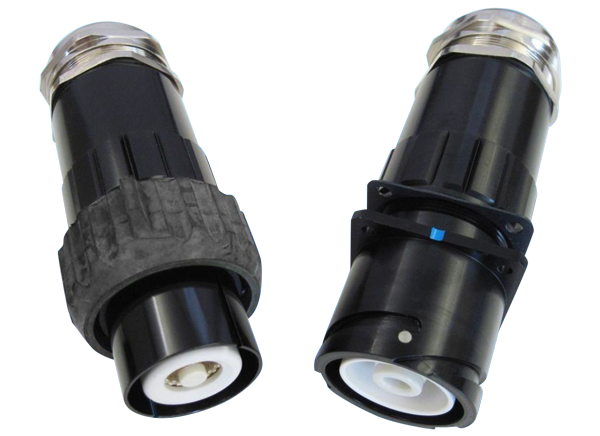

Amphenol Industrial RIG-Lok Connectors feature patented RADSOK® technology and deliver high power from the source to the load. These reverse bayonet connectors offer a higher amperage rating and lower temperature rise and insertion/removal forces compared to existing rugged connectors. They have up to a 1135A current rating, 2500VAC voltage rating, and work with wire gauges from 4/0AWG through 777MCM. The RIG-Lok series features a touch-proof, dead-front contact design when unmated. The plug contains an 18mm RADSOK socket and the receptacle contains an 18mm pin with the option of crimp, 2 hole busbar, or threaded busbar termination. The 18mm RIG-Lok Connectors are ideal for high amperage applications such as electrical generators, fuel cells, load banks, and charging systems. Other applications include rugged/harsh environments, land-drilling equipment, oilfields, and much more.
Features
- Ruggedized overmolded coupling nut
- Wire gauges 4/0AWG through 777MCM
- Utilizes patented RADSOK Technology
- 1/4-turn reverse bayonet
- Crimp or busbar termination
- Silver-plated contacts
- Fingerproof connections
- RoHS compliant
Applications
- Oilfields
- Power distribution panel suppliers
- Traction motor OEMs
- VFD drive buildings
- Land-drilling equipment
- Traction motors
- Top drive power distribution
- Rugged/harsh environments
Specifications
- 800A (110°C cable) and 1135A (125°C cable) current
- 2500VAC voltage rating
- 2000 mating cycles
- -40°C to +125°C component operating temperature range
- 300-day salt spray rating
