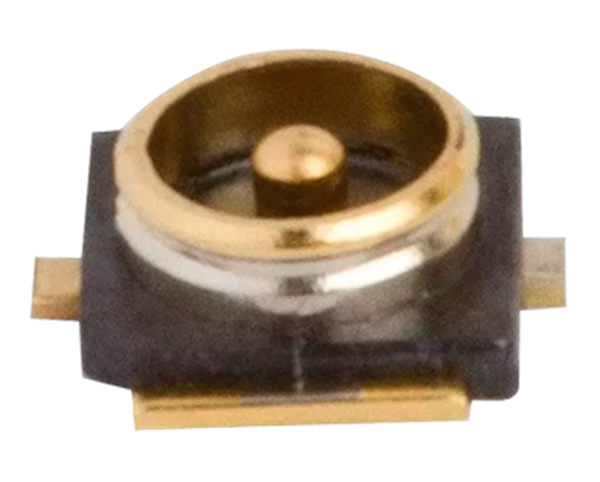

Amphenol RF AMC4 RF Connector
Amphenol RF AMC4 RF Connectors offer a PCB surface mount termination, straight orientation, and 50Ω impedance rating. These connectors feature a push-on coupling mechanism and solder contact termination construction. The location of the cavity number and gate may be arranged on the left or right side of the solder tails. Amphenol RF AMC4 RF Connectors provide a 60VAC rated voltage, DC to 6GHz frequency range, and -40°C to +90°C operating temperature.
Specifications
- 50Ω impedance rating
- 60VAC rated voltage
- DC to 6GHz frequency range
- 30 cycles of durability
- -40°C to +90°C operating temperature range
- Materials and Finishes
- Shell - Copper alloy
- Contact - Copper alloy
- Housing - UL94V-0 rated plastic
Infographic
Associated Cables & Assemblies
Amphenol RF AMC4 Plug to AMC4 Plug Cables
DC to 6GHz frequency range, cable lengths from 35mm to 1000mm, and 50Ω nominal impedance.
Amphenol RF AMC4 to RP SMA IP67 Cable Assemblies
Plug-to-straight bulkhead jack design on a 1.13mm cable in 50mm to 400mm lengths.
Amphenol RF AMC4 Plug to SMA Jack IP67 Cables
Vibration-resistant design, waterproof IP67 options, threaded coupling mechanism for secure mating
Amphenol RF SMA to AMC4 Cable Assemblies
Cable lengths range from 50mm to 300mm, brass contact material, and gold contact plating.
Published: 2020-09-14
| Updated: 2022-10-20
