Amphenol Sine Systems M22 & M35 PowerBOSSlite™ Power Cords & Connectors

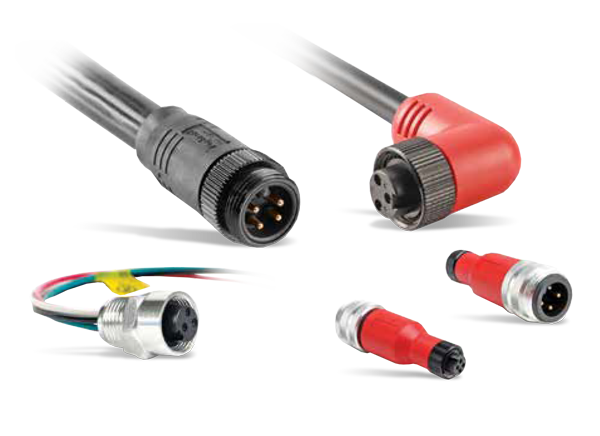

Amphenol Sine Systems M22 And M35 PowerBOSSlite™ Power Cords and Connectors are high-performance components that are available in single and dual-rated cable options. These power cords and connectors come in both male and female options in black and red color. The M22 and M35 connectors and power cords are available in different types of tees, dust caps, single-ended connectors, double-ended connectors, and receptacles.
M22 Power Cords & Connectors
The M22 Power Cords and Connectors are offered in 3 and 4 position drop or branch cable assemblies. These connectors feature a 15A maximum current, 600V maximum voltage, oil resistant PVC body, IP67 rating, NEMA 6P protection, and 14AWG cable. The M22 single-rated cables operate at a temperature range of -20°C to +90°C and dual-rated cables operate at a temperature range of -20°C to +105°C. These connectors avail less downtime, eliminate specialized tooling, reduce maintenance, manufacturing, and labor costs.
M35 Power Cords & Connectors
The M35 Power Cords and Connectors are offered in 3 and 4 position trunk cable assemblies. These connectors feature a 30A maximum current, 600V maximum voltage, oil-resistant PVC body, IP67 rating, NEMA 6P protection, and 10AWG cable. The M35 single-rated cables operate at a temperature range of -20°C to +90°C and the dual-rated cables operate in a -20°C to +105°C temperature range. These connectors avail less downtime, eliminate specialized tooling, reduce maintenance, manufacturing, and labor costs.
Features
- 600V maximum voltage
- High-performance and cost-effective
- Single and dual-rated cable options
- Comparable with existing standard products industry-wide
- Select parts available in black and red options
- M22
- 15A maximum current
- 14AWG
- M35
- 30A maximum current
- 10AWG
Specifications
- M22
- Oil resistant PVC body
- Copper alloy contacts
- IP67 and NEMA 6P protection
- Machined aluminum and anodized receptacle housing
- Single-rated
- 41 x 30 stranded copper
- 90°C dry or wet
- UL listed and FT-4 flame rating
- Black TPE cable jacket
- Dual-rated
- 105 x 34 stranded copper
- 90°C dry or 75°C wet
- CSA certified type STOOW
- Black PVC cable jacket
- M35
- Oil resistant PVC body
- Gold-plating over copper alloy contacts
- IP67 and NEMA 6P protection
- NFPA-79 meets standards for motor or branch circuits
- 65kA short-circuiting rating
- Machined aluminum and anodized receptacle housing
- Single-rated
- 105 x 30 stranded copper
- 90°C dry or wet
- UL listed and FT-4 flame rating
- Black TPE cable jacket
- Dual-rated
- 105 x 30 stranded copper
- 90°C dry or 75°C wet
- CSA certified type STOOW
- Black PVC cable jacket
