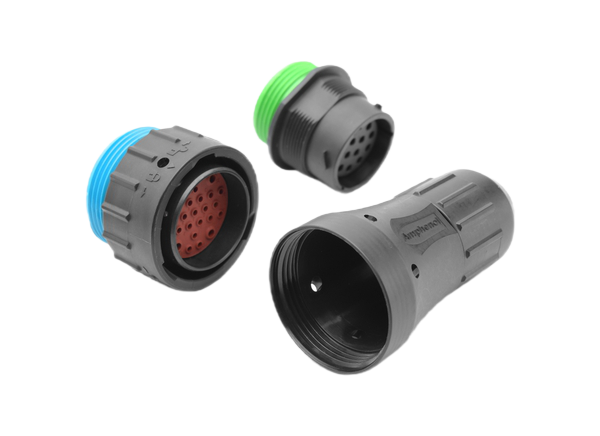

Amphenol Sine Systems DuraMate™ AHDP Circular Plastic Connectors

Amphenol Sine Systems DuraMate™ AHDP Circular Plastic Connectors are environmentally sealed, heavy-duty, circular connectors. This series provides an economical, quick-connect, bayonet locking system that is manufactured to withstand the challenges and complexities of off-road harsh environment applications. These connectors are available in size 24 with 13 insert arrangements and in size 18 with 6 insert arrangements. The connectors feature an easy-grip coupling system with visual and tactile indicators that ensure reliable mating confirmation. Two different backshell systems thread onto the rear of the connectors to provide strain relief and additional wire seal protection. Amphenol Sine Systems DuraMate AHDP connectors offer IP68 / IP69K protection (in mated condition) from dust, water, mud, and other contaminants. The AHDP components are ideal for panel-mount or in-line heavy-duty applications such as commercial vehicles, agriculture, construction, and marine installations.


  • Options
    • Size 24 with 13 insert arrangements -  7 (x2), 9, 16, 18, 19, 21, 23, 27, 29, 31, 35, and 47
    • Size 18 with 6 insert arrangements -  6 (x2), 8, 14, 20, and 21
  • 3 key-way bayonet locking system ensures proper mating of connectors
  • High-density signal and mixed power insert configurations
  • -55°C to +125°C operating temperature
  • High current configurations incorporating RADSOK® contacts
  • Utilizes an A Series™ standard contact system
  • High-strength, impact-resistant, lightweight thermoplastic housings
  • Low insertion force stamped terminals offer improved manufacturing efficiencies
  • Standard WTA (Wide Thread Adapter) provides maximum access to the rear grommet and improved serviceability
  • IP67/IP69K protection (in mated condition)
  • Durable high-temperature silicone seal provides a barrier from lubricating oils, hydraulic fluids, and fossil fuels
  • Backshells maintain a compression-fit design to resist maximum pull-out forces and facilitate strain-relief for jacketed cable ranges
  • Wire-entry sealing is available in three separate ranges for discrete wire applications


  • Harsh environment
  • Off-road
  • Automotive

Product Overview

Mechanical Drawing - Amphenol Sine Systems DuraMate™ AHDP Circular Plastic Connectors


Amphenol Sine Systems DuraMate™ AHDP Circular Plastic Connectors
Published: 2017-02-09 | Updated: 2023-06-01
