Amphenol Aerospace High-Speed Quadrax Contacts

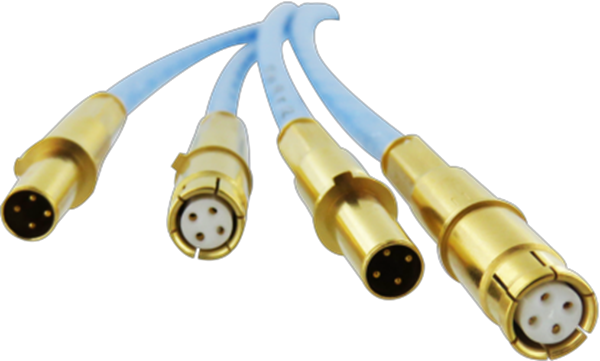

Amphenol Aerospace High-Speed Quadrax Contacts are made up of an outer contact with four inner contacts spaced to form two 100Ω or 150Ω controlled impedance differential pairs. Both contacts, when used in Amphenol MIL-DTL-38999 III and ARINC connectors, provide an excellent alternative for harsh environment applications. These applications include Ethernet 100 Base-T 100Ω, Gigabit Ethernet 1000 Base-T 100Ω, Fibre Channel 150Ω, IEEE1394B FireWire 110Ω. Amphenol Aerospace High-Speed Quadrax Contacts are gold plated with crimp terminations. They offer low power consumption and EMI compatibility.

Features

Four strategically spaced inner contacts form two 100Ω or 150Ω matched impedance differential pairs
Outer contact has rugged wall section for durability
Available in size 8 crimp termination style

Also available in size 8 with PC tails
Requires modification of MIL-DTL-38999 connector to accommodate keyed contacts

Size 8 Contact Performance

• Up to 3GHz bandwidth
• Data rate exceeds 3Gbits/s
• 500V_RMS max. voltage rating at sea level
• 1000V_AC rms dielectric withstanding voltage between all inner contacts at sea level
• 500V_AC rms dielectric withstanding voltage between inner and outer contacts at sea level
