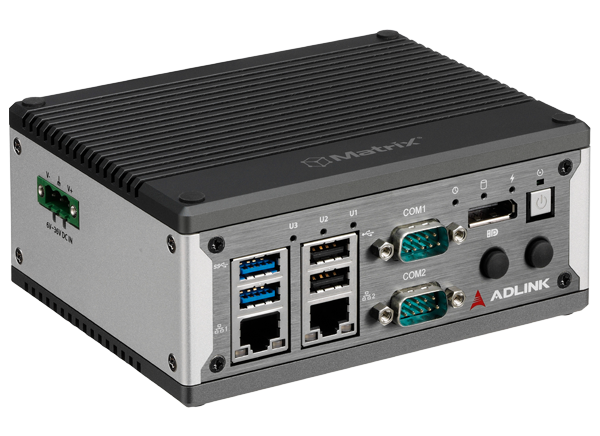

ADLINK Technology MXE-210 IoT Gateways

ADLINK Technology MXE-210 IoT Gateway devices are ultra-compact embedded platforms based on the Intel Atom® x5-E3930/x7-E3950 processors that deliver optimum I/O design for maximum connectivity. The MXE-210 devices feature a dual GbE LAN, two COM, two USB 2.0, two USB 3.0 host ports, dual mini PCIe slots, and a USIM socket. This supports communication with connections via Wi-Fi, BT, 3G, LoRa, and 4G LTE. The MXE-210 devices enable seamless interconnection and ensure interoperability between systems.

The MXE-210 IoT Gateways support Windows® 10 IoT Enterprise 64Bit, Ubuntu Linux 16.04 LTS 64Bit, Wind River® Pulsar™ Linux LTS 17, and Debian 8.5 64Bit software. These devices operate from 6V to 36V supply voltage and 0°C to 50°C standard temperature range. The MXE-210 devices are available in dimensions of 140mm x 110mm x 58mm. These embedded platforms present an intelligent and robust system supporting application development and easy service deployment. That includes intelligent transportation, facility management, industrial automation, and Internet of Things (IoT) applications.


  • Equipped with Intel Atom® x7-E3950/x5-E3930 processors
  • Rich I/O and expansion
    • 1x display port, 2x USB 2.0, 2x USB 3.0, 2x GbE ports, and 2x COM ports (RS-232/422/485)
    • 2x mPCIe slots, 1x USIM slot, 1x mSATA, and 1x micro SD slot
  • Optional
    • 1x 2.5" SATA SSD by storage kit or isolated 8x DI/ 8x DO
  • eSIM support
  • Built-in ADLINK SEMA management solution
  • Railway EN50121 compliance


  • Windows® 10 IoT Enterprise 64Bit
  • Ubuntu Linux 16.04 LTS 64Bit
  • Wind River® Pulsar™ Linux LTS 17
  • Debian 8.5 64Bit


  • 1x DDR3L 1600MHz SODIMM 2GB (up to 8GB) memory
  • Power supply
    • 6V to 36V DC input
    • Optional 40/90W AC-DC adaptor AC input
  • 140mm x 110mm x 58mm (5.5" x 4.3" x 2.3") dimenions
  • 0°C to 50°C standard operating temperature range
  • -40°C to 85°C storage temperature range


  • Intelligent transportation
  • Facility management
  • Industrial automation
  • Internet of Things (IoT) applications
