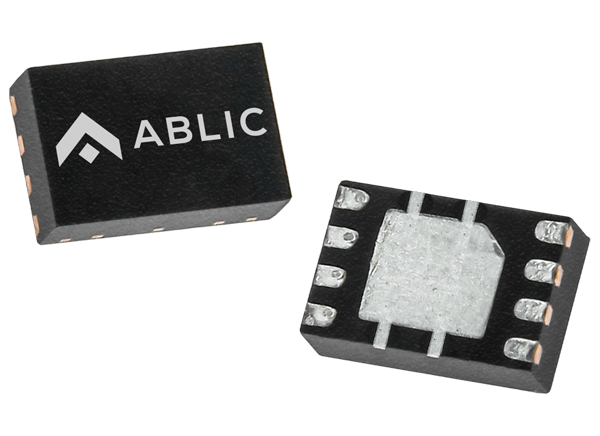

ABLIC 8581AA Step-Down Switching Regulator

ABLIC 8581AA Step-Down Switching Regulator is a 36V and 600mA synchronous regulator that is developed using the high withstand voltage CMOS process technologies. This regulator maintains high-accuracy FB pin voltage at ±1.5V. The 8581AA step-down regulator operates with PWM switching control under heavy load and automatically switches to PFM switching control under a light load. This regulator comes with a built-in synchronous circuit that achieves high efficiency easier as compared to the conventional step-down switching regulators. The 8581AA regulator incorporates a built-in overcurrent protection circuit and a thermal shutdown circuit that protects the IC from excessive load current and heat damage. Typical applications include constant-voltage power supplies for industrial equipment and home electric appliances.

Features

  • Developed using high withstand voltage CMOS process technologies
  • Contributes to the miniaturization of electronic equipment
  • PWM/PFM switching control
  • Achieves high-efficiency operation in accordance with the device status
  • Built-in overcurrent protection circuit and thermal shutdown circuit

Specifications

  • 600mA output current
  • 2.5V to 12V output voltage range
  • 4V to 36V input voltage range
  • ±1.5% FB pin voltage accuracy
  • 91% efficiency
  • 2.2MHz typical oscillation frequency
  • -40°C to 85°C operating temperature range

Block Diagram

Block Diagram - ABLIC 8581AA Step-Down Switching Regulator

Typical Application Circuit Diagram

Application Circuit Diagram - ABLIC 8581AA Step-Down Switching Regulator

Performance Graph

Performance Graph - ABLIC 8581AA Step-Down Switching Regulator
Published: 2020-07-16 | Updated: 2022-03-11
